Wall Light—W.213
Wall Light—W.213
Wall Light—W.213
Wall Light—W.213
Wall Light—W.213
Wall Light—W.213
Wall Light—W.213
Wall Light—W.213

Short Description:

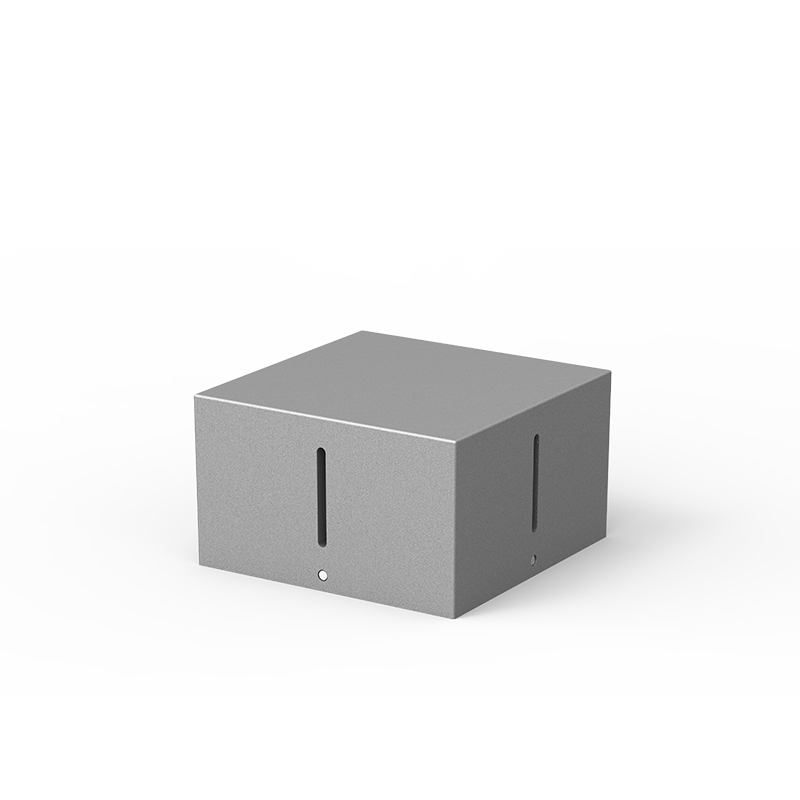

The W.213 series LED wall light is a square wall-mounted lighting fixture that integrates aesthetics and technology, with a focus on minimalist design, flexible light output, and multi-scene adaptability, specifically designed for architectural facade decorative lighting. Its compact and lightweight body, combined with a high-precision optical system, enhances the nighttime beauty of buildings while creating dynamic light and shadow art through intelligent control, making it an ideal choice for commercial spaces, cultural venues, and high-end residences.

Tags:architectural facade, floodlight, landscape lighting, outdoor,

Product Detail
  • Square geometric shape: Clean and simple lines, with no redundant decorations on the surface, easily integrates into modern architectural styles.

  • Lightweight aluminum alloy die-cast lamp body: Combines strength and lightness, corrosion-resistant and oxidation-resistant, maintains shape for long-term outdoor use.

  • 1~4 sides free light emission mode: Options for single-sided, double-sided, three-sided, or four-sided light emission to meet different needs such as outlining architectural profiles, wall washing, and ground projection.

  • Precise beam angle adjustment: Supports various light distribution options including narrow angle (6°), wide angle (60°), and combined angles (10°-60°) to adapt to focused lighting and atmospheric rendering.

  • Monochrome light + RGBW full-color dual mode: Monochrome light provides pure illumination, while RGBW full-color supports 16 million colors for free switching, achieving dynamic effects such as gradients and jumps.

  • Independent surface control technology: Each light-emitting surface can be individually set for color and brightness, giving the architectural facade a multi-dimensional sense of light and shadow.

  • IP66 waterproof and dustproof: Resistant to heavy rain and sandstorm, suitable for extreme environments from -30℃ to +50℃.

  • IK09 impact resistance rating, offering strong anti-break performance.

Parameter table

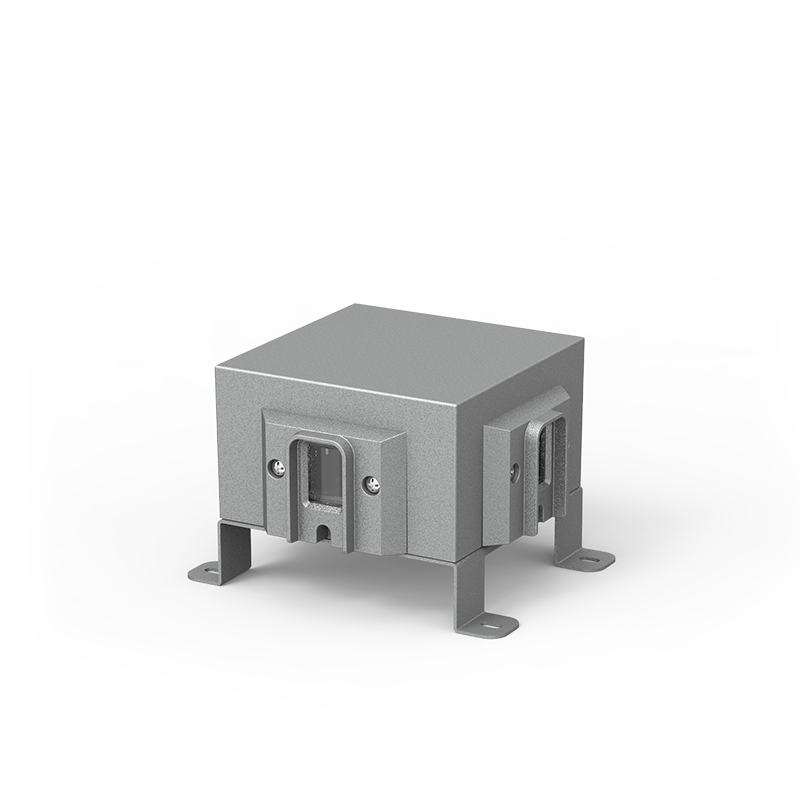

W.213H
1-11.pngSizeL150* W150* H70mm
Power5~20W
Efficiency20lm/w~50lm/w
Weight1.2KG
Optics

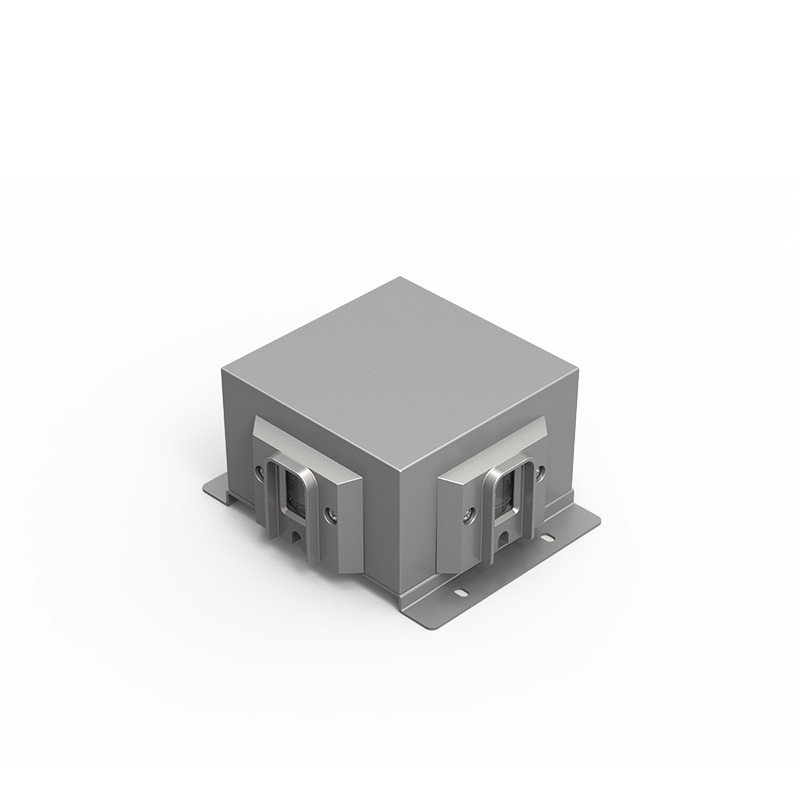

W.213F
2-11.pngSizeL120* W120* H70mm
Power16~32W
Efficiency20lm/w~50lm/w
Weight1.0KG

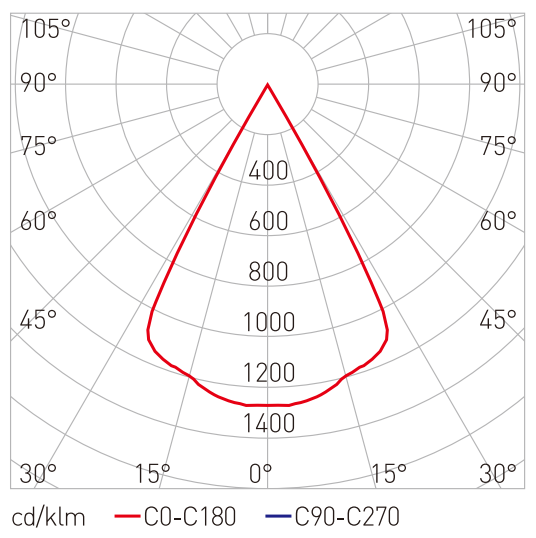

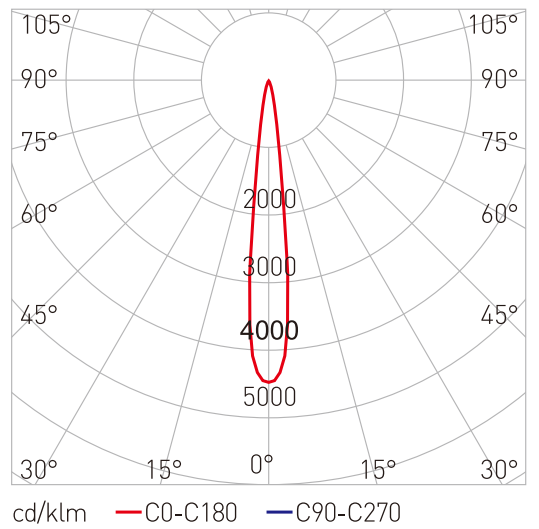

Optics10°、60°、10°-60°
AttributesDescription
Rated power90~305Vac 50/60 Hz
Control solutionMonochrome always light or DMX512 dimming
Anti-collision levelIK09
IPIP66
safety classClass III
CRICRI70
Corrosion protection levelWF2
Ambient temperature-45℃~+50℃
Ambient humidity10%~95%RH
CCT2200K/2700K/3000K/4000K/5000K/6500K/RGB/RGBW
Vibration level3G
Product lifespan50,000 hours (L70@40℃ Ta)

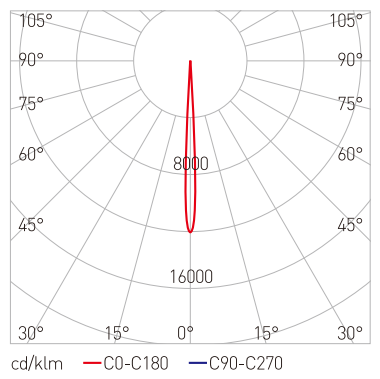

3-8 (1).png
