Short Description:

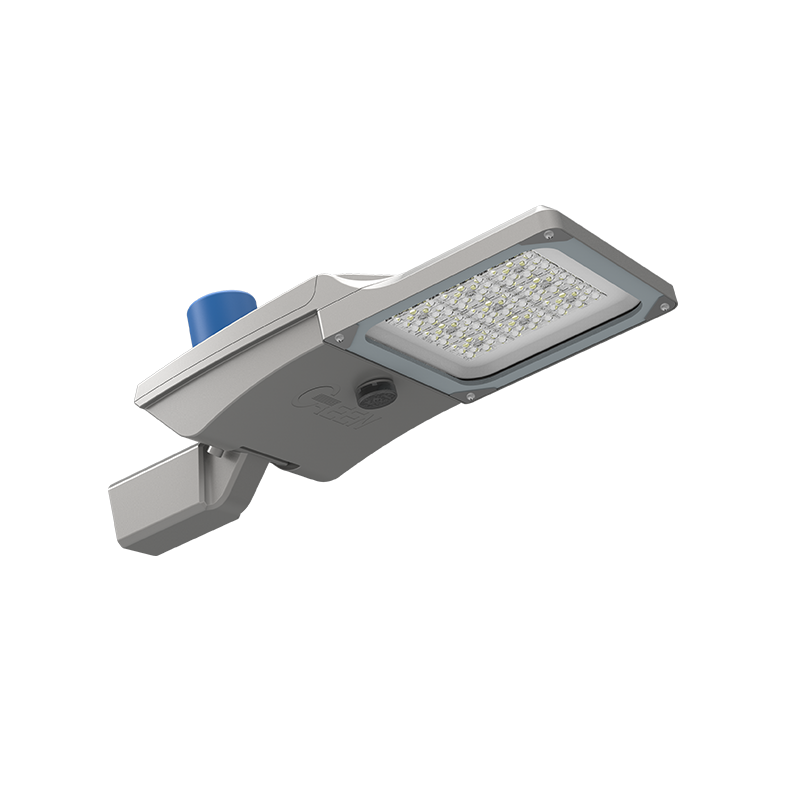

The R.327X LED street light series comes in three sizes with a power range of 50W to 320W. It has an installation tail seat with an independent structure. Customers can choose to install it horizontally or vertically according to the actual usage situation, and can also adjust the elevation angle of the lamp. It is mainly applicable to the lighting needs of motorways, urban roads, pedestrian roads and other roads.
Tags：intelligent, lighting, motorways, outdoor, pedestrian streets, Street lights,
Product Detail
The housing and the connecting tail seat of the lamp post are all made by the aluminum alloy die-casting molding process, which has good corrosion resistance.

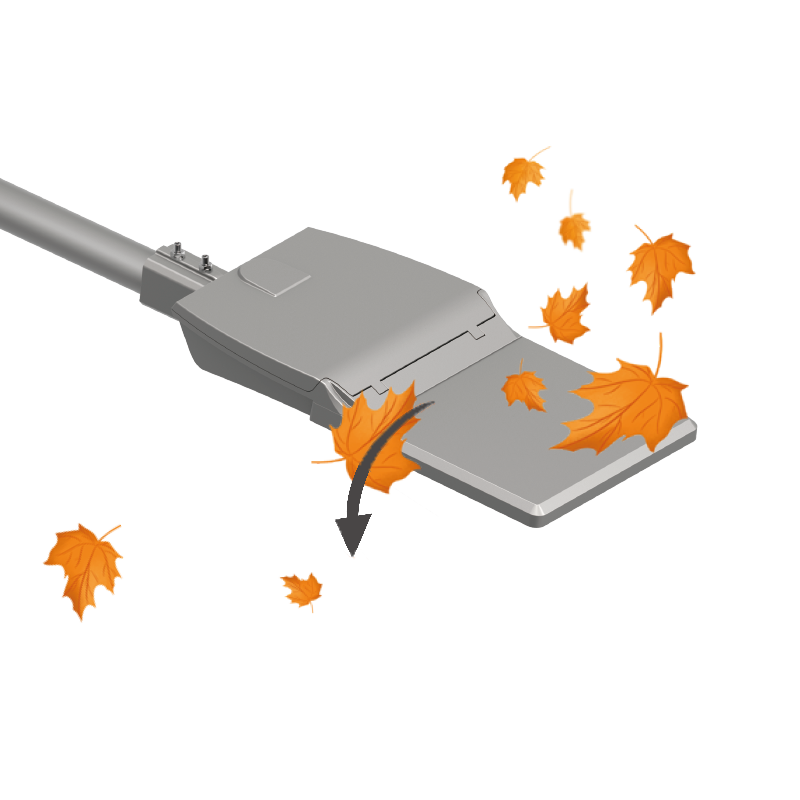

It adopts a structural design with a smooth surface to reduce wind resistance, avoid dirt accumulation, and has a self-cleaning function, always maintaining smooth and rapid heat dissipation.

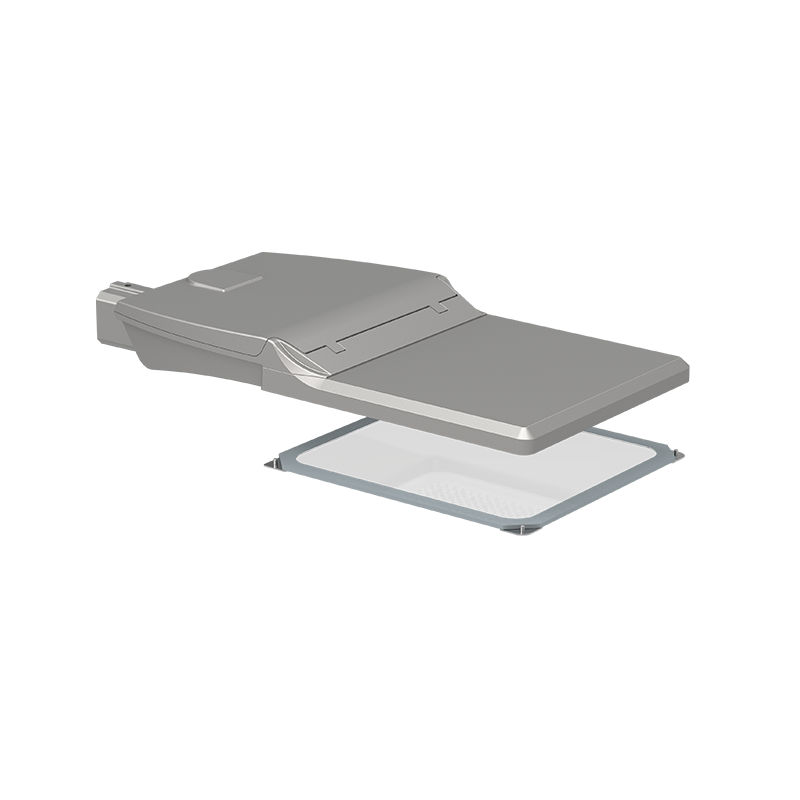

All internal electronic components and optical components are protected by the housing and the light-emitting surface of tempered glass, and the protection level can reach IP66.
The electrical cavity and the light source cavity are divided into two different cavities, avoiding the situation where the heat accumulates and superimposes on each other, causing the temperature to be too high and resulting in the premature failure of the light source and power supply.

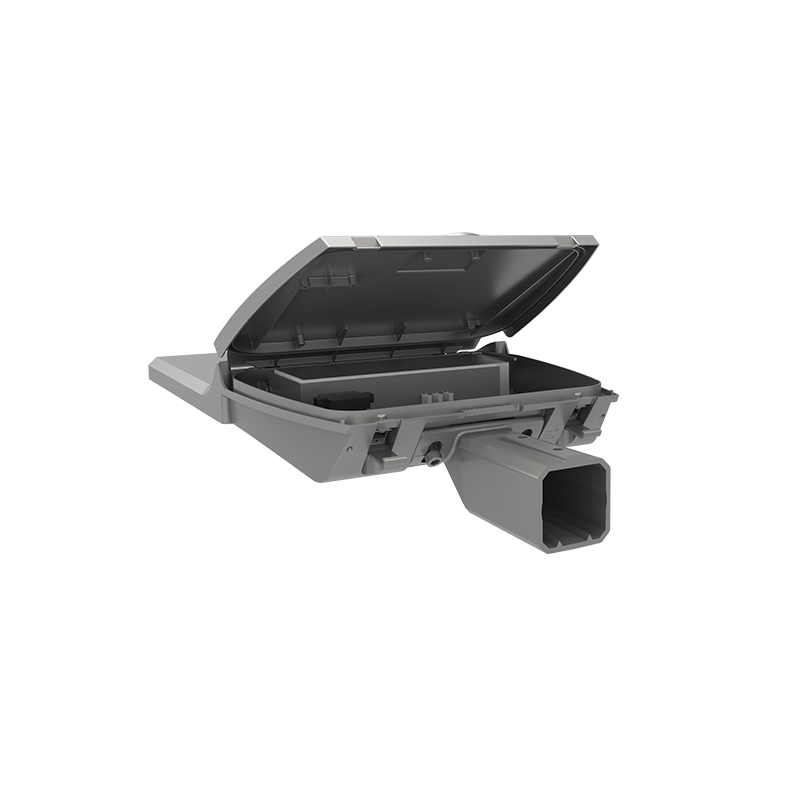

It has a top-opening cover structure design. The electrical cavity can be opened by hand without any tools, which is simple and convenient to operate.

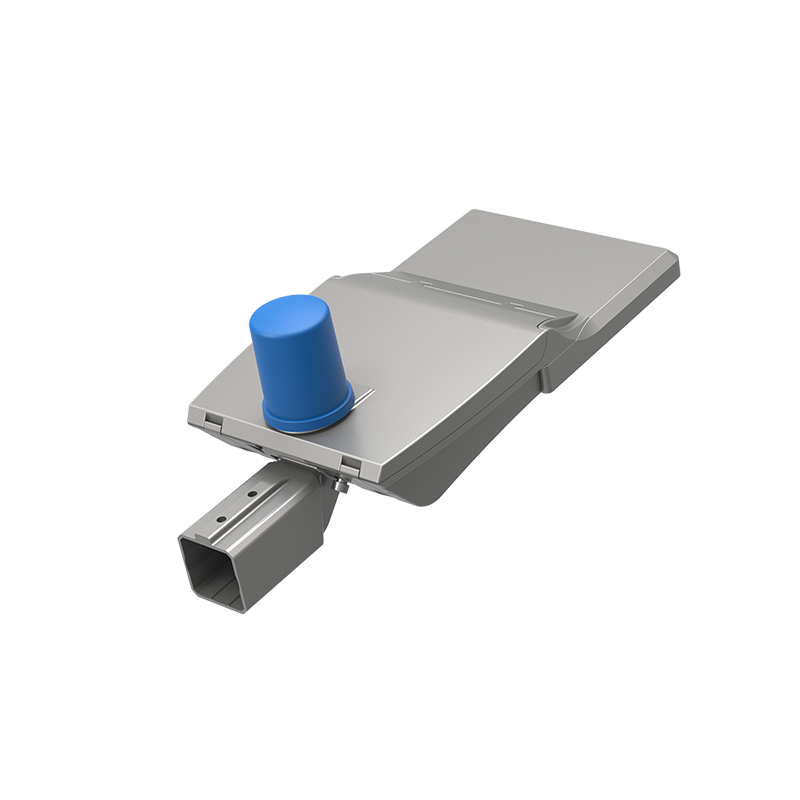

The connecting tail seat of the lamp post enables the lamp to be installed horizontally or vertically.
All the exposed screws are made of high-quality stainless steel materials.

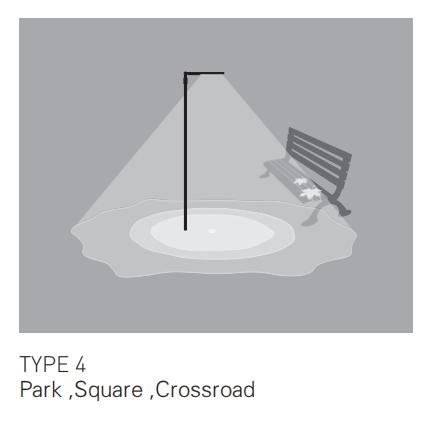

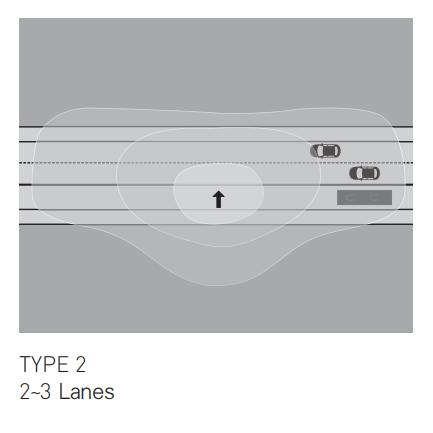

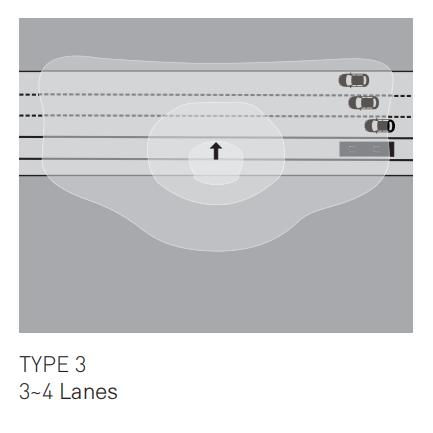

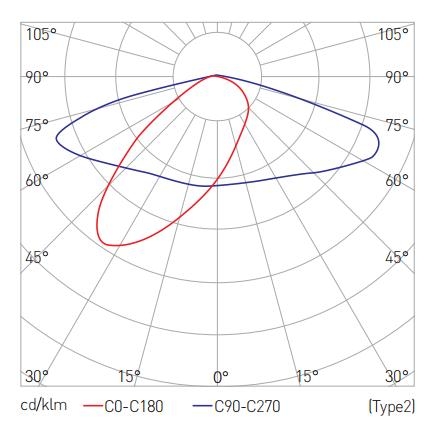

There are multiple professional street light light distribution patterns, which can be selected according to different roads.
The luminous efficiency of this series of street lights can reach up to 180lm/w. For specific details, you can contact our sales staff.
Optional accessories:
Anti-falling steel cable
Surge protector (10KV/15KV/20KV/40KV)
NEMA & ZHAGA standard interfaces
Constantly-on and dimmable power supplies
Power-off connectors when the cover is opened
Curved tempered glass light-emitting surface
Parameter table
| R.3271 | ||

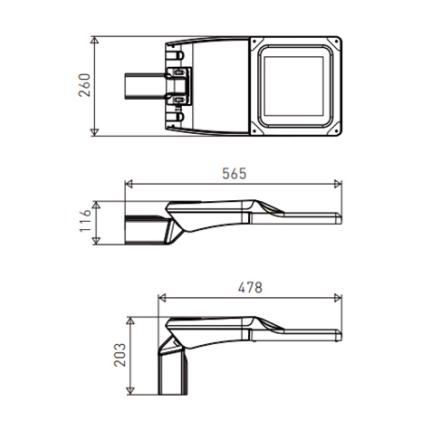

 | Size | L565*W260*H116mm(horizontal) L478*W260*H203mm(vertical) |
| Power | 50~100W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 4.5KG | |

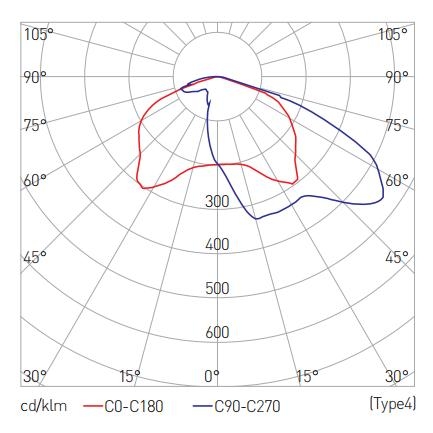

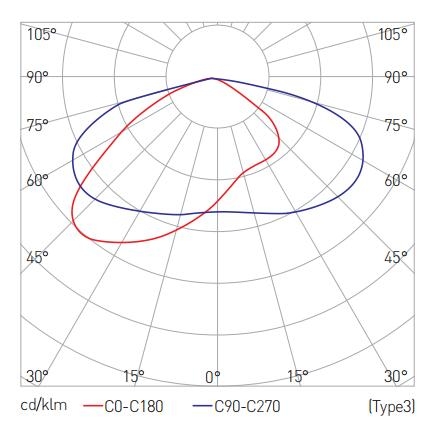

| Optics | Type 2、Type3、Type4 | |
| R.3272 | ||

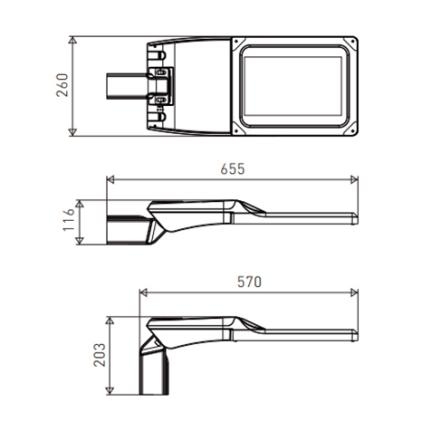

 | Size | L655*W260*H116mm(horizontal) L570*W260*H203mm(vertical) |
| Power | 50~200W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 5.3KG | |
| Optics | Type 2、Type3、Type4 | |
| R.3273 | ||

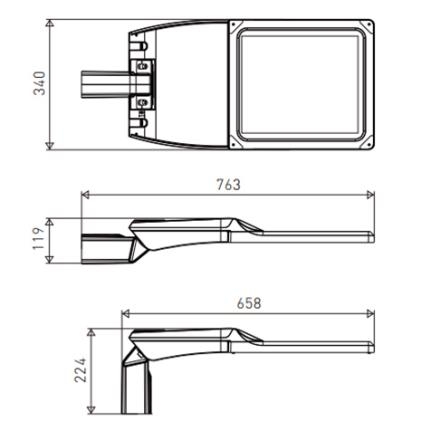

 | Size | L763*W340*H119mm(horizontal) L658*W340*H224mm(vertical) |
| Power | 200~320W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 8.5KG | |
| Optics | Type 2、Type3、Type4 | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK09 |
| IP | IP66 |
| safety class | Class I、Class II |
| CRI | CRI70 |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 2200K/2700K/3000K/4000K/5000K/6500K |
| Adjust the angle | 0~15° |
| Components Choosable | · Vertical install transition sleeve · Power off protector · Optical controller · Intelligent control interface and intelligent controlaccessories · Falling prevention safety rope · Single lamp single control · Surge Protective Device |
