Short Description:

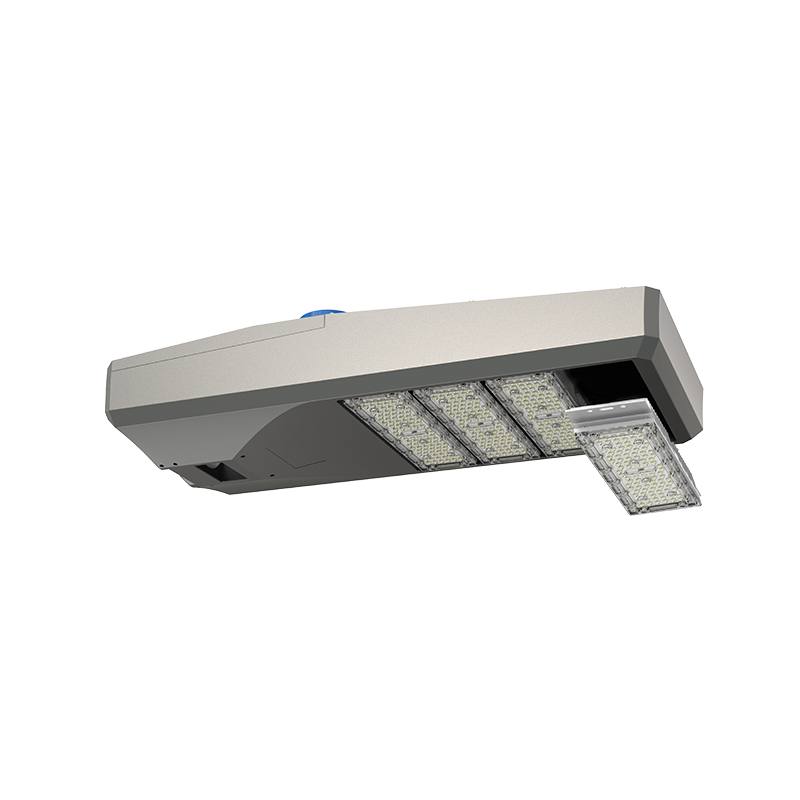

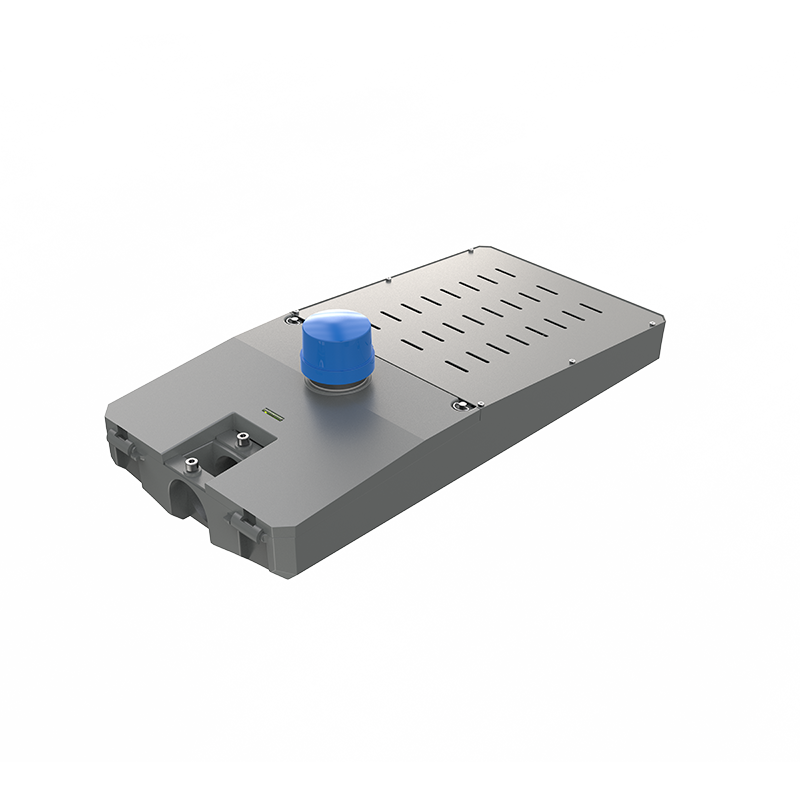

The R.3254 is an ultra-economical high luminous efficiency LED road lighting product. It features an optical module with a standardized structure and a lamp body structure designed by integral aluminum alloy die-casting. It is applicable to motorways and pedestrian roads, especially in areas with insufficient power supply like rural areas and mountainous areas, meeting the lighting needs with relatively low power.
Tags：high luminous efficiency, LED street lights, modularization, optical modules, outdoor lighting, street light illumination,
Product Detail

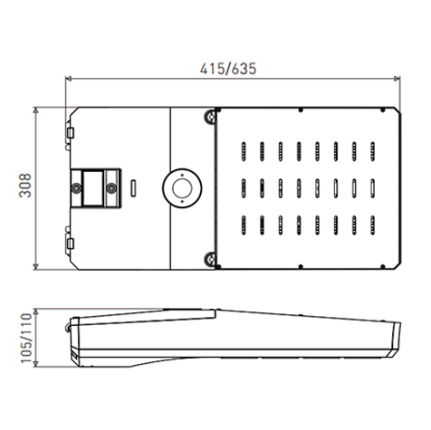

This series of products comes in two sizes with a power range of 30W to 300W.

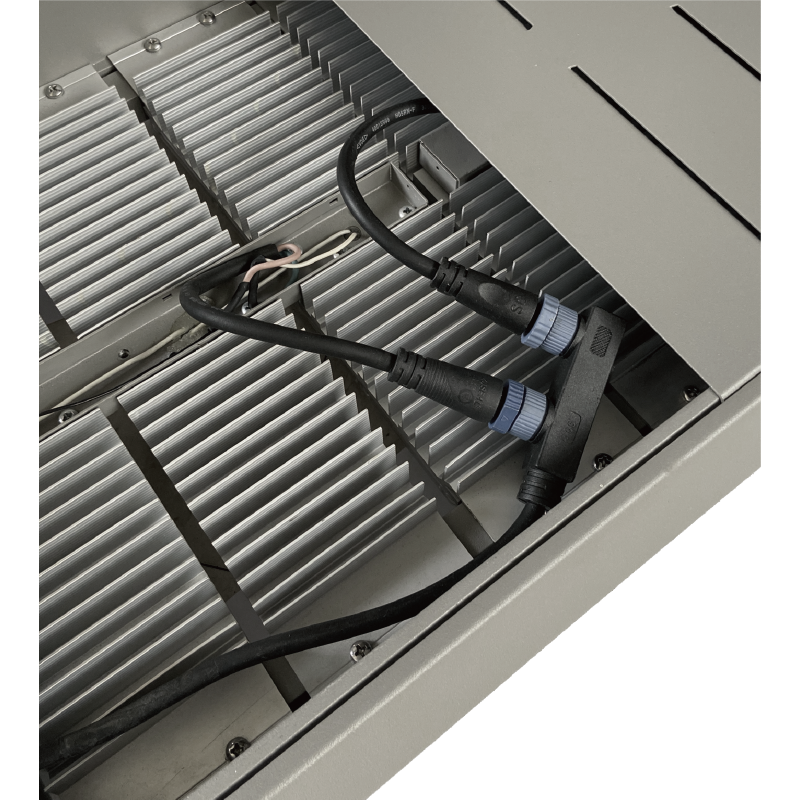

The optical part is composed of multiple independent light-emitting modules. The modules have excellent waterproof and dustproof performance with a protection level of IP67. Each optical module is equipped with an IP67 waterproof mating connector.
An IP67 waterproof multi-pin mating connector is configured in the electrical cavity to facilitate reliable connection with each light-emitting module.
Each optical module is an independent unit, making maintenance and replacement simple, convenient and economical.
A horizontal adjuster is equipped on the back of the lamp body, facilitating on-site operation by construction workers.
The integrated high-pressure die-cast lamp body has good anti-seismic performance, especially in places with large vibrations such as elevated roads and bridges.
Optional accessories:

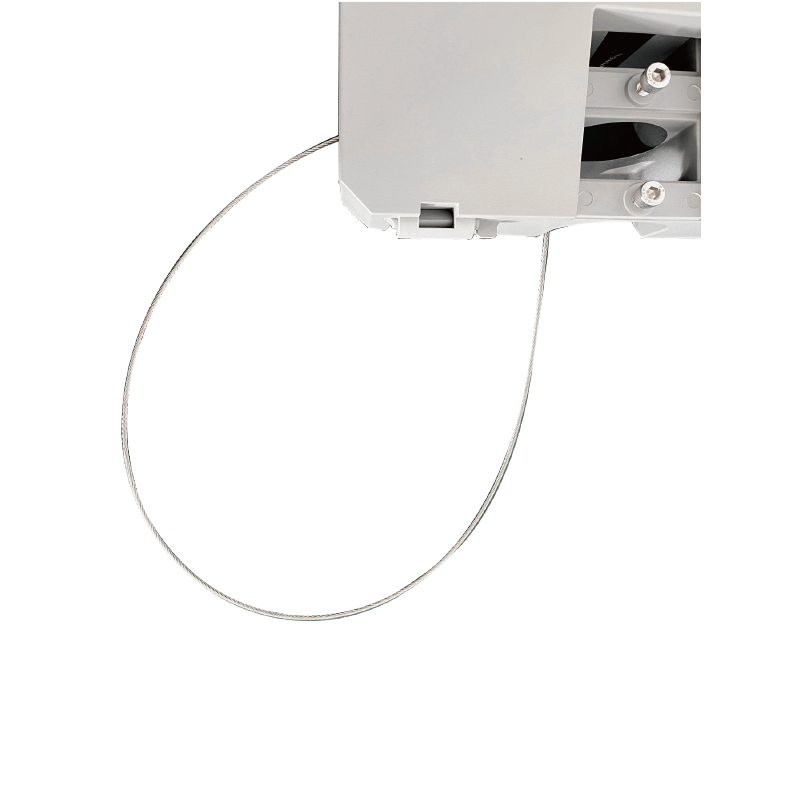

Anti-falling steel cable

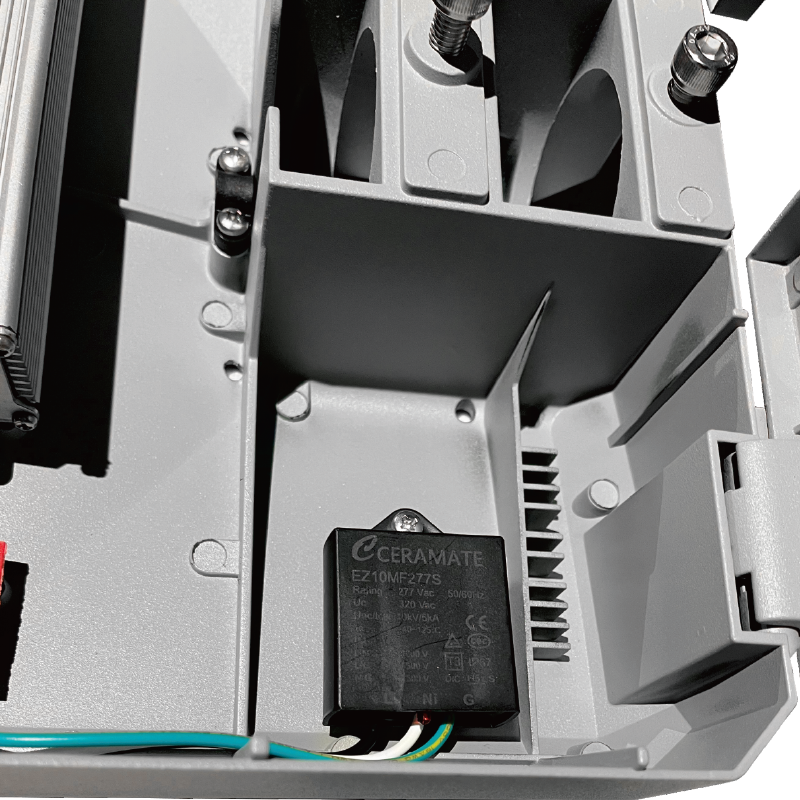

Surge protector (10KV/15KV/20KV/40KV)
NEMA & ZHAGA standard interfaces
Parameter table
| R.3240 | ||
 | Modulus number | 1~4 |
| Power | 30~240W | |
| Efficiency | 100lm/w~180lm/w | |
| Weight | 3.0~6.0KG | |

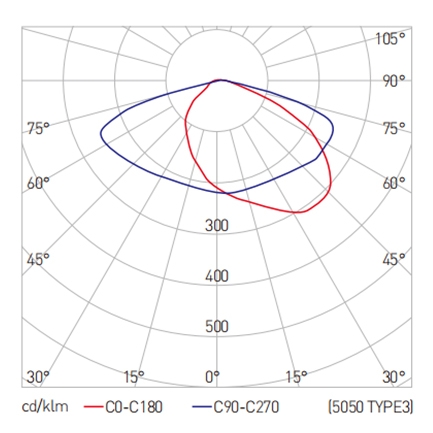

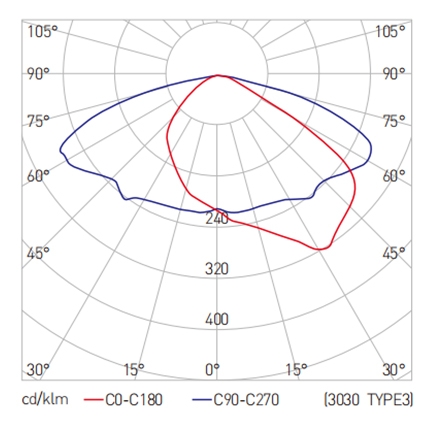

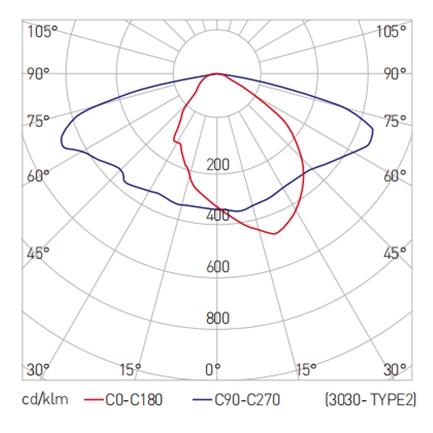

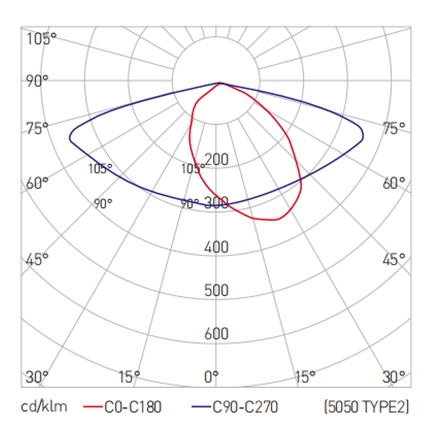

| Optics | Type 2、Type3 | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light |
| Anti-collision level | IK09 |
| IP | IP66 |
| safety class | Class I、Class II |
| CRI | CRI70 |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 2200K/2700K/3000K/4000K/5000K |
| Components Choosable | · Vertical install transition sleeve · Power off protector · Optical controller · Intelligent control interface and intelligent controlaccessories · Falling prevention safety rope · Single lamp single control · Surge Protective Device |
