Short Description:
The R.3251 series is a road lighting product with a modular structure launched by Green. The light-emitting part is composed of multiple light-emitting modules, and the power of each light-emitting module ranges from 30W to 60W. This series of products can achieve a maximum luminous efficiency of 200lm/w and has a good energy-saving effect. It is suitable for motorways and pedestrian roads, especially in some areas with insufficient power supply such as rural areas and mountainous areas, to meet the lighting needs with relatively low power.
Tags：energy-saving products, LED street lights, optical modules, street light illumination, street lighting,
Product Detail
The lamp body structure is composed of an aluminum alloy die-casting electrical cavity and aluminum alloy extruded profiles. The length dimension of the lamp varies according to the number of modules.
The optical part is composed of multiple independent light-emitting modules. The modules have good waterproof and dustproof performance with a protection level of IP67. Each optical module is equipped with an IP67 waterproof mating connector.
An IP67 waterproof multi-pin mating connector is configured in the electrical cavity to facilitate reliable connection with each light-emitting module.

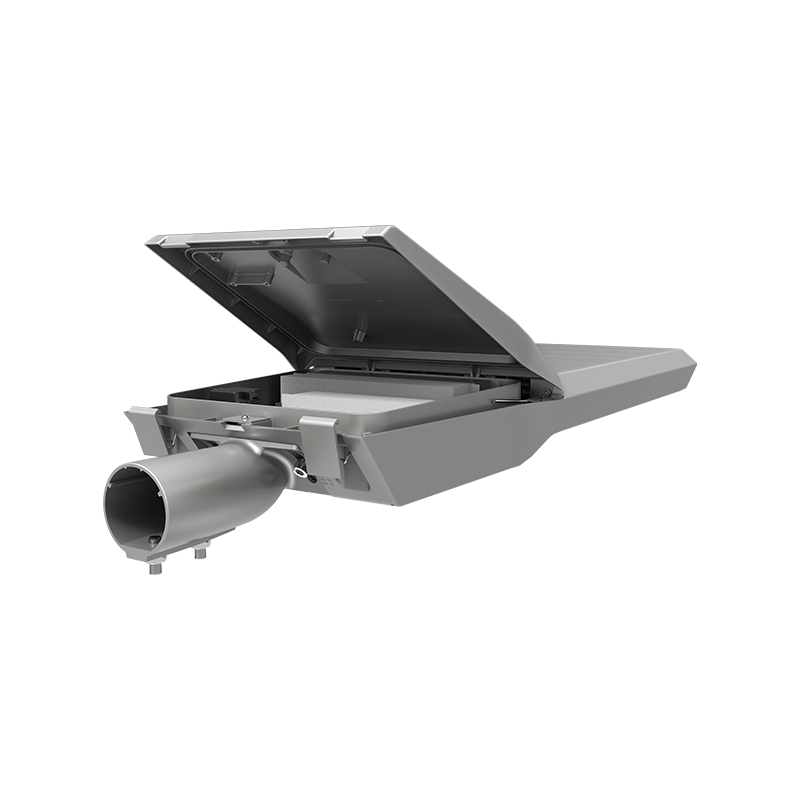

The electrical cavity can be opened without tools and can be operated by hand.

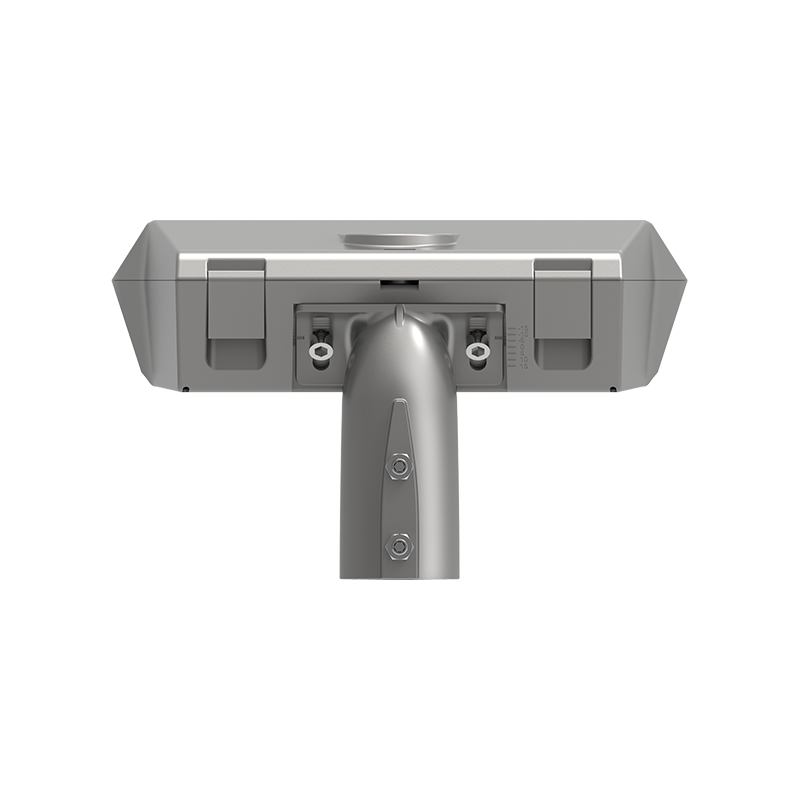

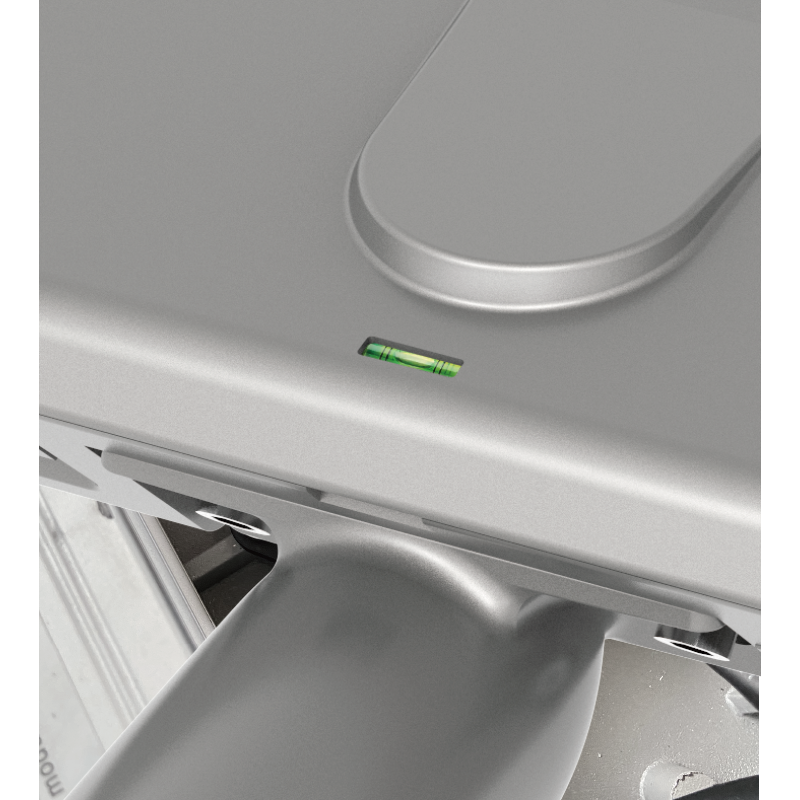

The lamp post connection tail seat can be installed horizontally or vertically. The elevation angle can be adjusted through a dial. Meanwhile, a horizontal indicator is equipped on the lamp body to calibrate whether the lamp is installed correctly on the horizontal plane.

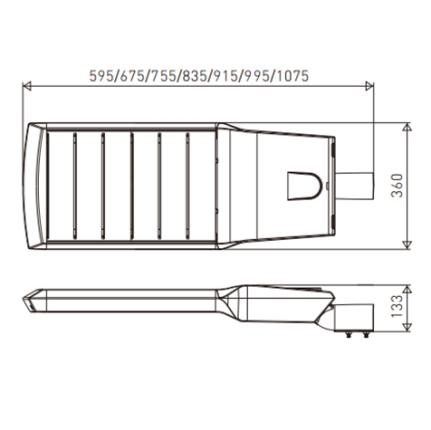

The power range of this series of products is from 30W to 420W, and there are a total of 7 length dimensions.
Optional accessories:
Anti-falling steel cable

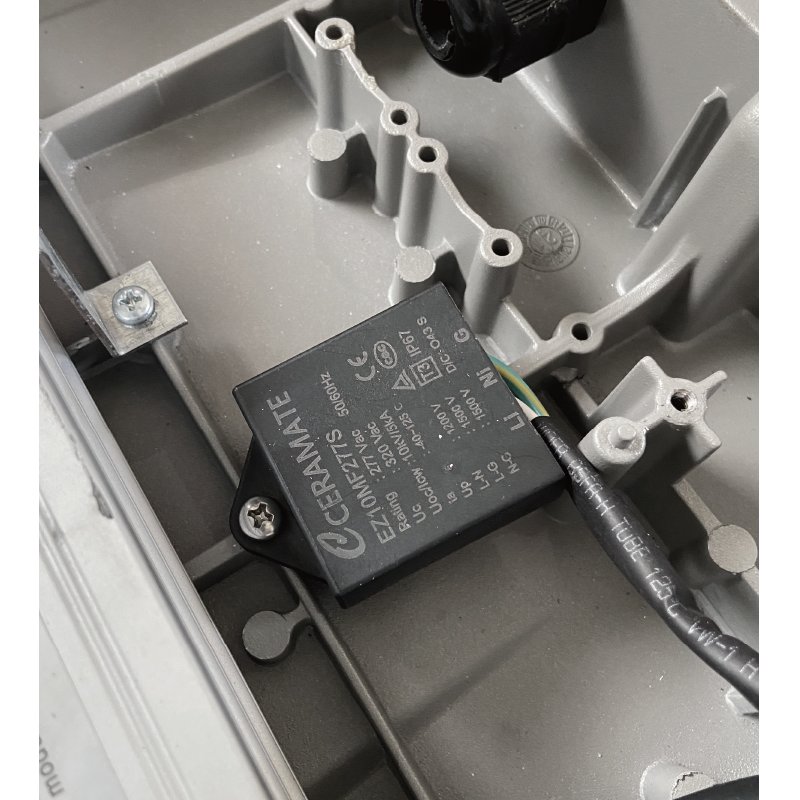

Surge protector (10KV/15KV/20KV/40KV)
NEMA & ZHAGA standard interfaces
Power-off connector when the cover is opened
Parameter table
| R.3240 | ||
 | Modulus number | 1~7 |
| Power | 30~420W | |
| Efficiency | 130lm/w~180lm/w | |
| Weight | 6.0~11.9KG | |

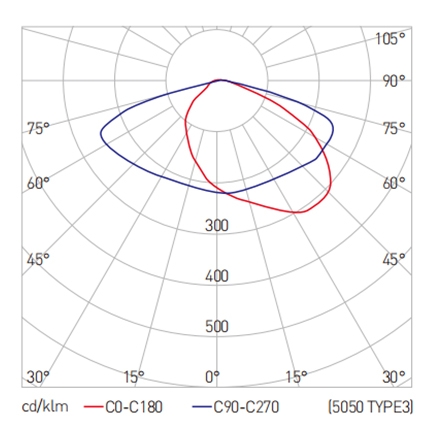

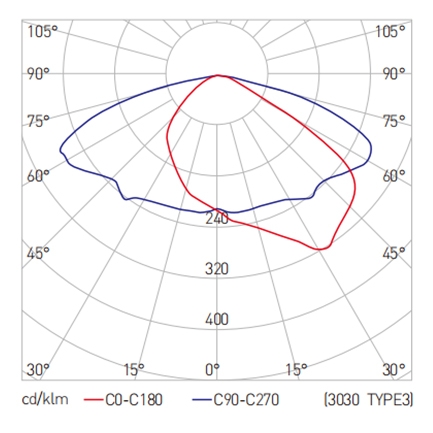

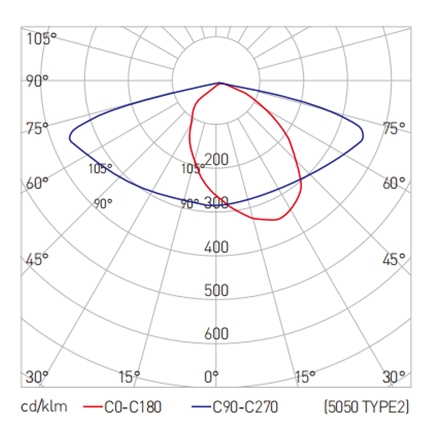

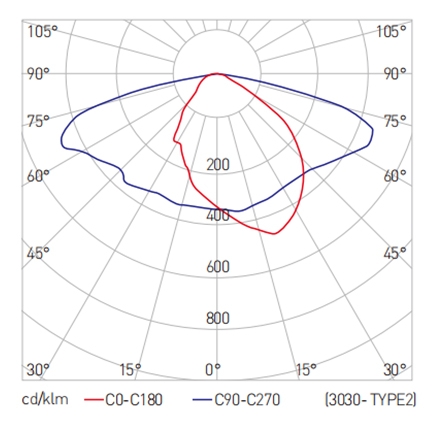

| Optics | Type 2、Type3 | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light |
| Anti-collision level | IK09 |
| IP | IP66 |
| safety class | Class I、Class II |
| CRI | CRI70 |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 2200K/2700K/3000K/4000K/5000K |
| Adjust the angle | ±90° |
| Applicable pole dimensions | Ø34mm、Ø48mm、Ø60mm、Ø76mm |
| Components Choosable | · Vertical install transition sleeve · Power off protector · Optical controller · Intelligent control interface and intelligent controlaccessories · Falling prevention safety rope · Single lamp single control · Surge Protective Device |
