Short Description:
This series of solar street lights features an aluminum alloy die-cast lamp body structure, utilizing solar power generation and lithium battery energy storage, controlled by an intelligent management system for the smart operation of various components. It primarily addresses issues such as high energy consumption, short lifespan, and poor stability of traditional products, especially in locations with tight electricity supply, difficulties in grid power provision, high construction difficulty, and high construction costs, such as urban new areas, industrial parks, highways, mountainous areas, pastoral areas, and rural areas. It can achieve intelligent security and green lighting functions without the need for cable installation or electricity bills, operates on low-voltage direct current power supply, is safe and reliable, and is low-carbon and environmentally friendly.
Tags：energy storage, energy-saving, lithium battery, photovoltaic, road, solar, Street Light,
Product Detail

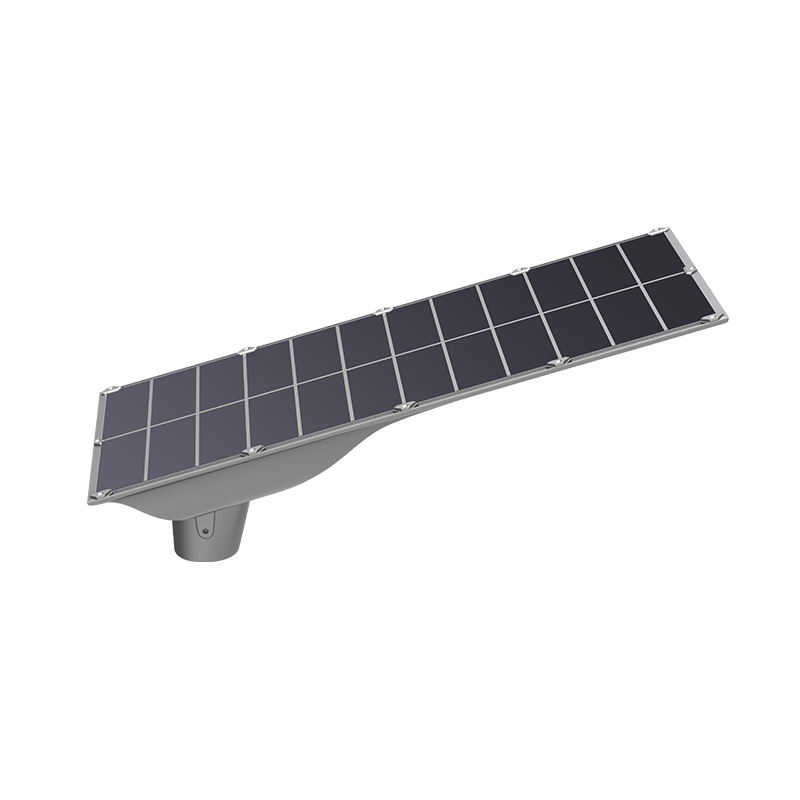

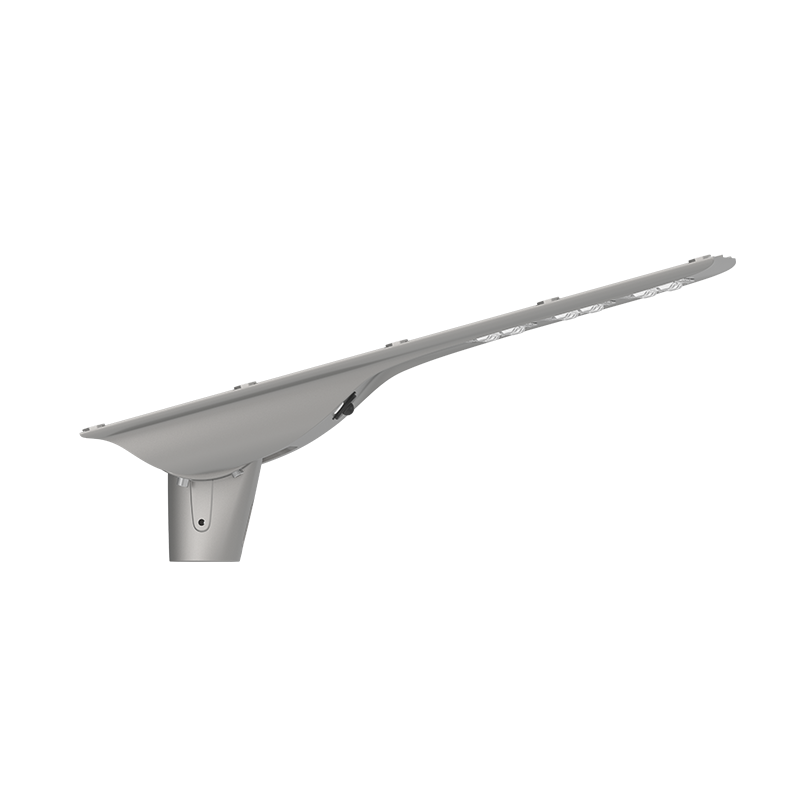

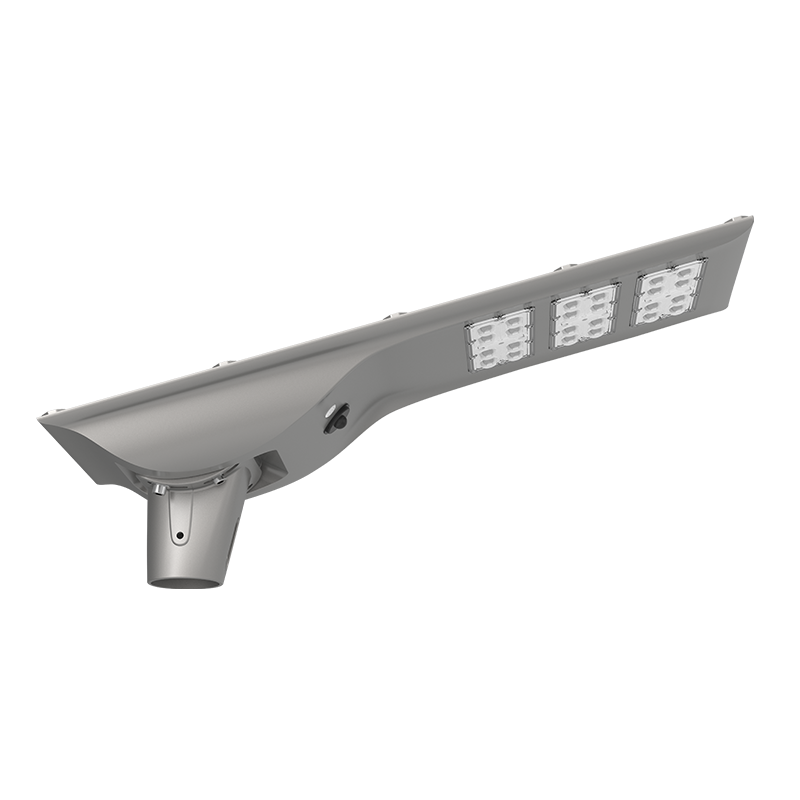

The solar street light consists of main components such as the light source, solar panel, energy storage battery, and controller, and can be installed and used without wiring on-site.
The lamp head is made of aluminum alloy die-casting material, with a surface treated by electrostatic spraying, providing excellent weather resistance.
The LED uses a high-efficiency light source, offering stable performance and optical quality.
The solar panel uses monocrystalline silicon photovoltaic panels, providing power for the light source and control unit.
The energy storage battery uses lithium iron phosphate batteries, which have superior cycle life and safety performance.
The controller is responsible for coordinating the work of solar panels, batteries and loads, and has overload protection.
Short circuit protection, reverse discharge protection, polarity reverse connection protection, lightning protection, undervoltage protection, overcharge protection, load startup recovery settings, maximum power point tracking (MPPT), and other functions.
This product has a wide range of applicability, automatically identifying day/night.
The timing period for the street light is adjustable from 1 to 15 hours, and the lighting output mode can be set according to the application scenario.
It uses temperature compensation to automatically adjust charge and discharge parameters, extending the service life of the storage battery.
It can integrate street lights with surveillance to ensure safety in the area while providing illumination.
It can also utilize cloud computing and Internet of Things (IoT) technologies to scientifically and efficiently control and integrate resources for the street lighting system, aligning with smart cities and smart transportation.
It can meet the lighting needs for 3 days of rainy weather.
Parameter table
| R.3001 | ||
 | Size | L697*W361*H209mm |
| Power | 40W | |
| Efficiency | 150lm/w~200lm/w | |
| Weight | 9.8KG | |

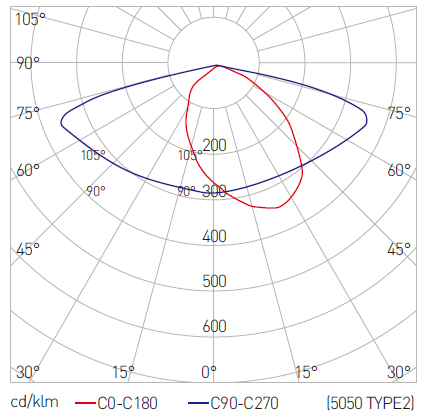

| Optics | Type 2、Type3 | |
| R.3002 | ||
 | Size | L846*W361*H209mm |
| Power | 60W | |
| Efficiency | 150lm/w~200lm/w | |
| Weight | 11.6KG | |
| Optics | Type 2、Type3 | |
| R.3003 | ||
 | Size | L846*W361*H209mm |
| Power | 80W | |
| Efficiency | 150lm/w~200lm/w | |
| Weight | 13.2KG | |
| Optics | Type 2 | |
| Attributes | Description |
| Photovoltaic Panel Voltage | ? VDC |
| Photovoltaic Panel Power | ? W |
| Storage Battery Voltage | ?VDC |
| Storage Battery Capacity | ? AH |
| Lighting Mode | 100%-3H, 50%-4H, 30%-5H |
| Number of Rainy Days | 3天 |
| Anti-collision level | IK08 |
| IP | IP66 |
| CCT | 2200K/2700K/3000K/4000K/5000K/6500K |
| CRI | CRI70 |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| Wind resistance rating | 120Km/h |
