Short Description:

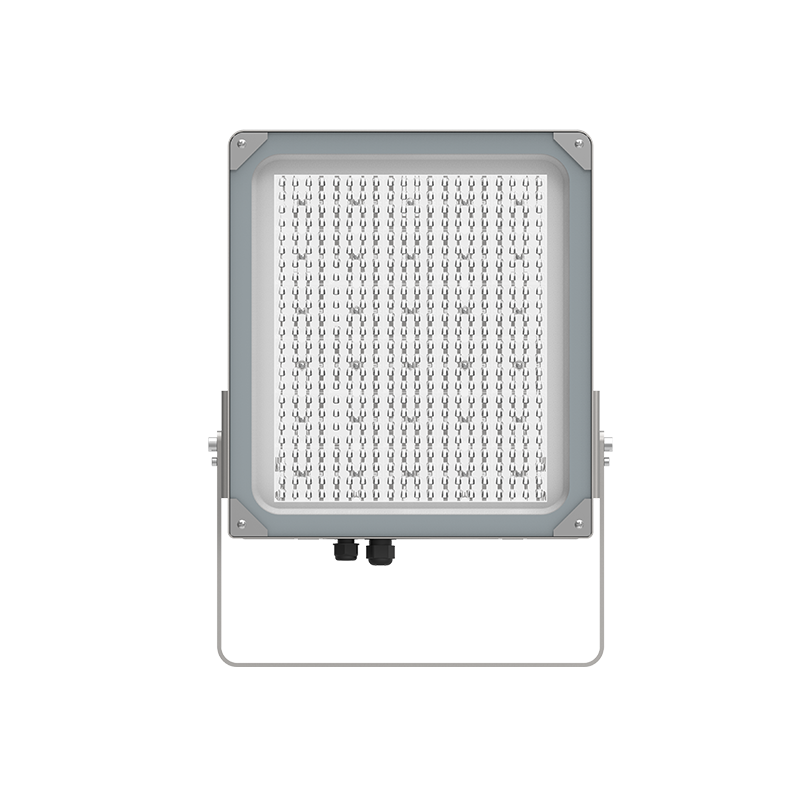

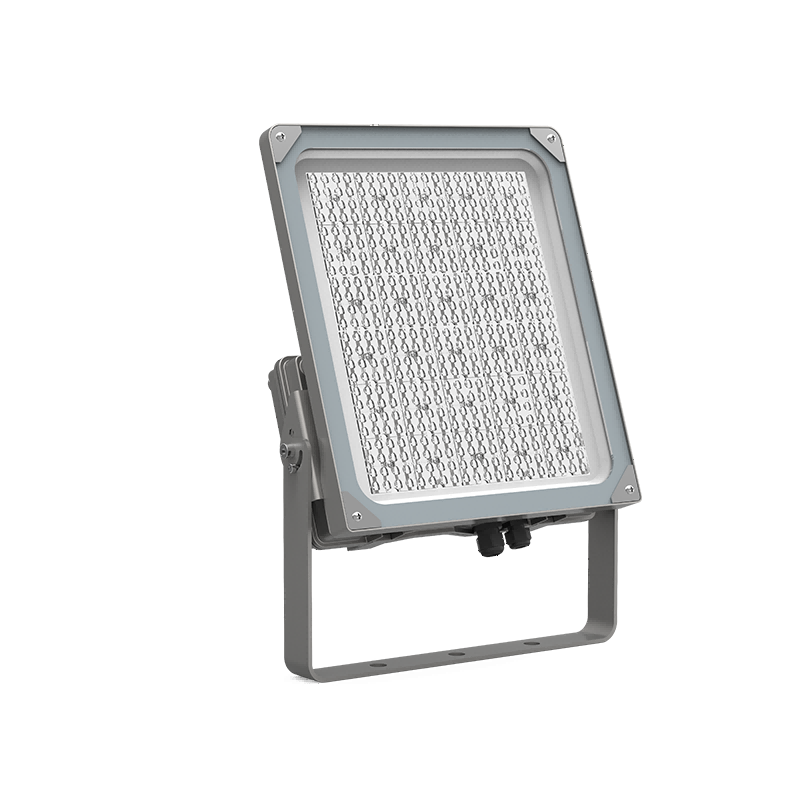

F.378&F.379 LED Flood light is a multifunctional flood light developed by GREEN, Multiple lighting options are available for application in different occasions, such as squares, ports, building facades, and road intersections.
Tags：Flood light, intersection, outdoor, port, Projection light, square,
Product Detail

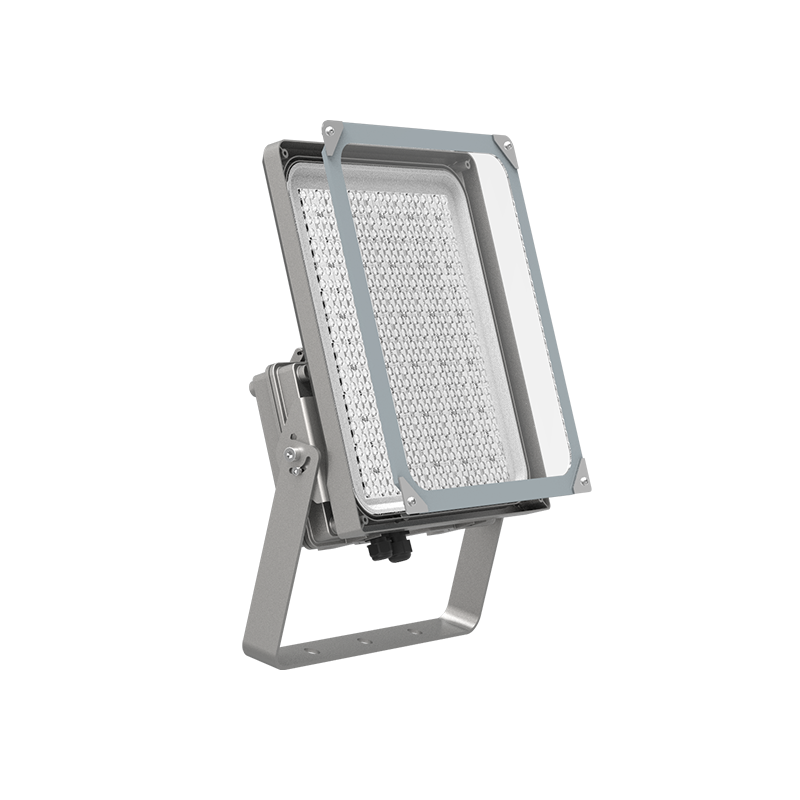

Light body is made of aluminum alloy die-casting, and undergoes surface electrostatic spraying treatment, which has good weather resistance.
With high-strength tempered glass, which not only effectively prevents harmful gases and ultraviolet rays from damaging optical and electrical components in the environment, but also has a certain impact resistance, making it safe and reliable.
Different beam angle can be selected according to different applications.
The optical cavity and electrical cavity can be combined and connected together, or the optical cavity can be combined separately to produce higher power flood lights according to customer’s needs.
Body is reserved with a structure that can install NEMA and ZHAGA, and can be equipped with relevant standard interface accessories.
10KV/15KV/20KV/40KV SPD for customers to choose from.
The electrical cavity can also be equipped with connector knife contact block according to customer needs, making operation safer and more reliable.

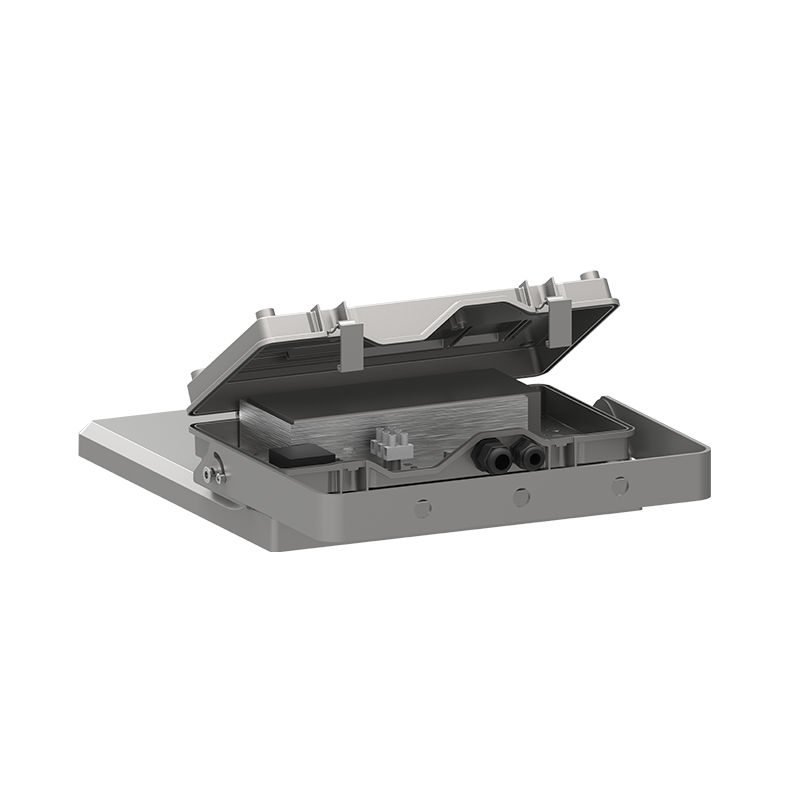

Electrical wiring and maintenance can be done by manually opening the electrical box for easy operation.

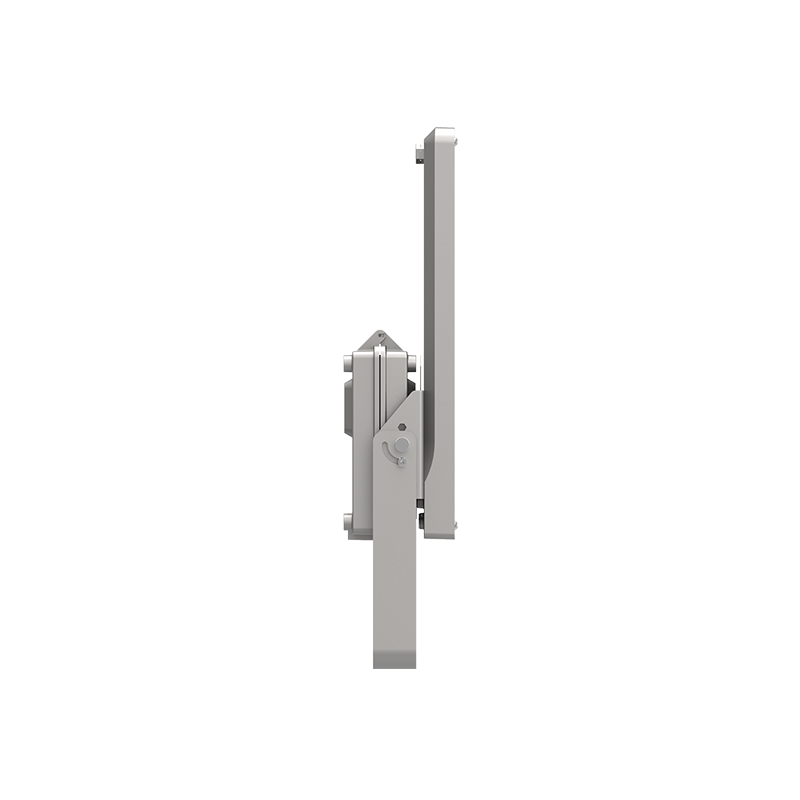

Bracket can be adjusted for angle, making on-site installation convenient.
This product provides safety wire as an optional option, customers can freely choose according to their needs.
The newly launched FN series of traffic intersection specific lighting for can greatly reduce the visual impact of glare on drivers and reduce the occurrence of traffic accidents. At the same time, it can also improve the effective utilization of light output at intersections, reduce power, and save energy.
Parameter table
| F.378 | ||

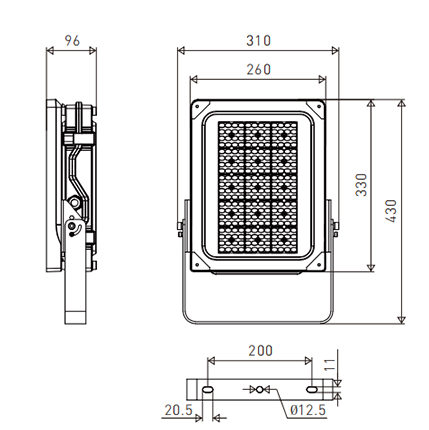

 | Size | L430*W310*H96mm |
| Power | 100~150W | |
| Efficiency | 120m/w~180lm/w | |
| Weight | 5.2KG | |

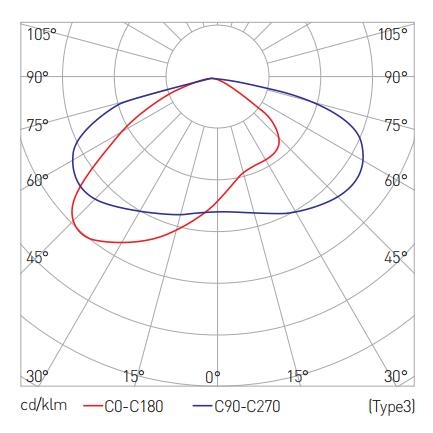

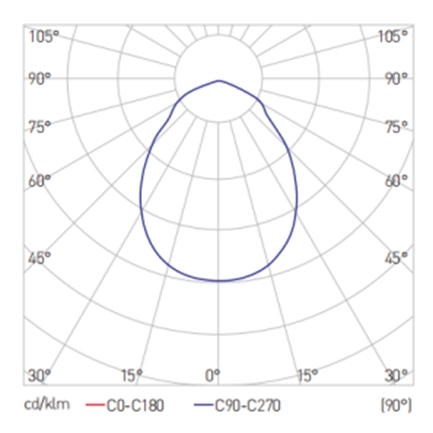

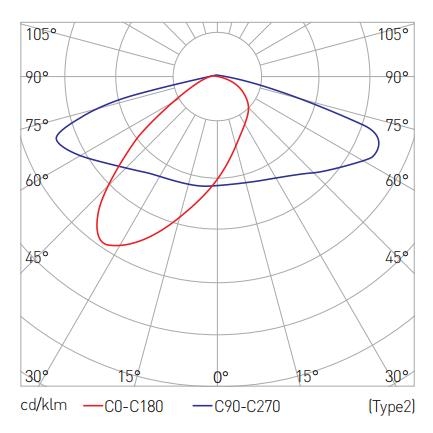

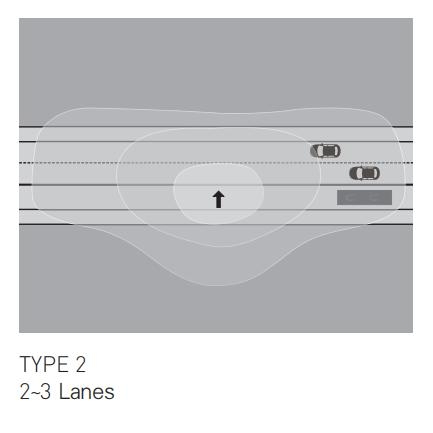

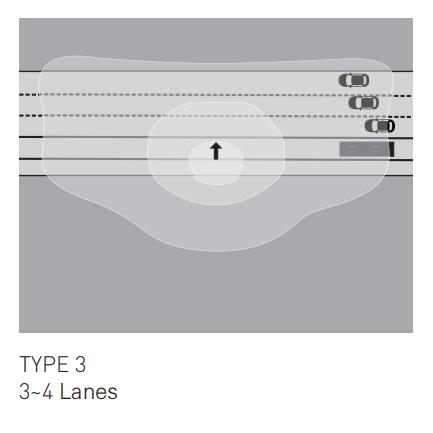

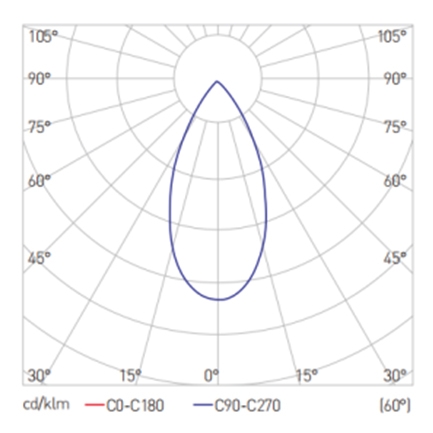

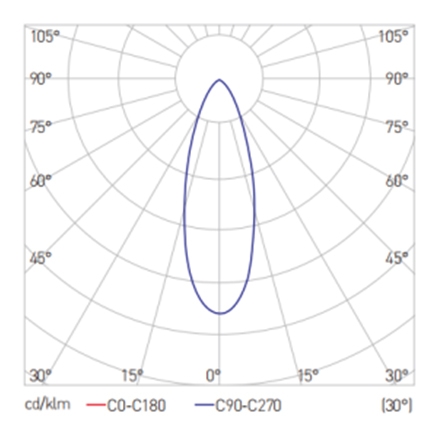

| Optics | 30°、60°、90°、Type 2、Type3、Type4 | |
| F.379 | ||

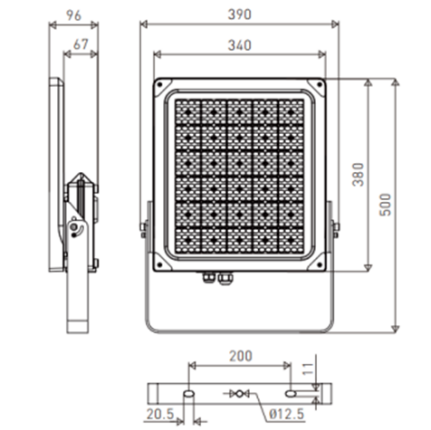

 | Size | L500*W390*H96mm |
| Power | 180~300W | |
| Efficiency | 120m/w~180lm/w | |
| Weight | 7.5KG | |
| Optics | 30°、60°、90°、Type 2、Type3、Type4 | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK09 |
| IP | IP66 |
| safety class | Class I、Class II |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| CCT | 3000K/4000K/5000K |
| Adjust the angle | 0~90° |
| Components Choosable | · Power off protector · Falling prevention safety rope · Single light single control |
