Short Description:

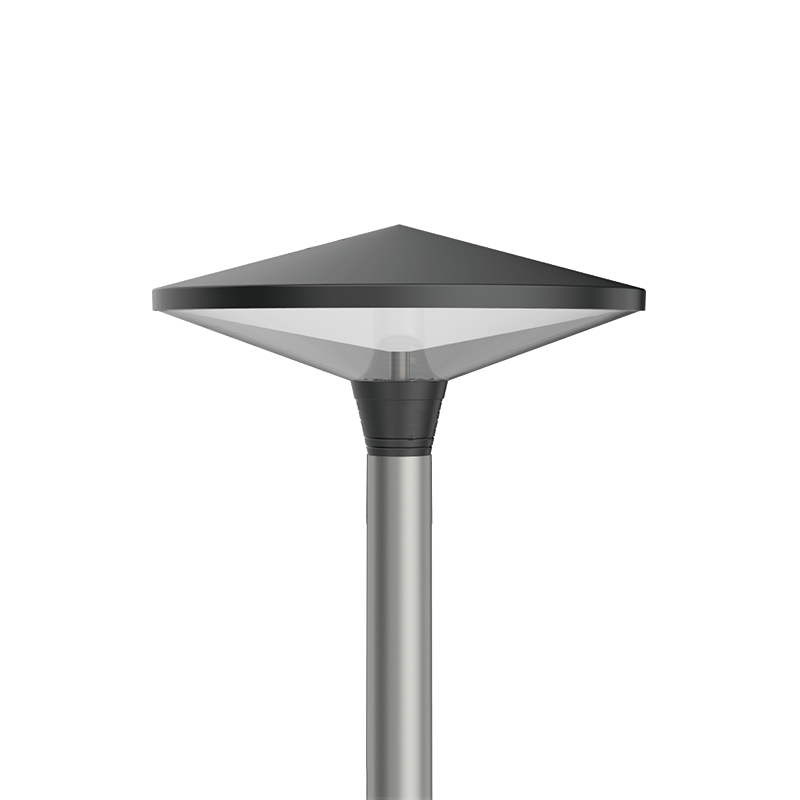

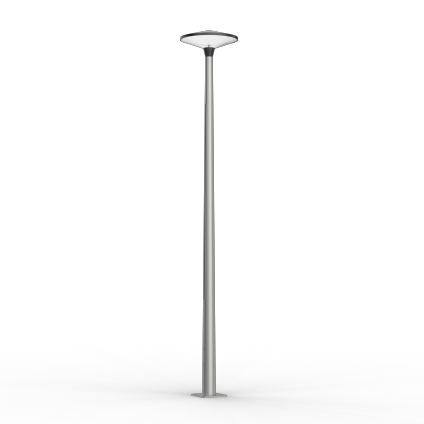

The R.4005 product is designed with the shape inspired by the flying saucer, which is simple and aesthetically pleasing. It is a glare-free lighting product, and the light on the illuminated ground is soft, providing pedestrians with a very comfortable lighting experience. It is mainly applied in places such as leisure squares, commercial pedestrian streets, parks, and industrial park leisure areas.
Tags：flying saucers, Garden luminaires, outdoor lighting, park luminaires, tourism landscapes,
Product Detail

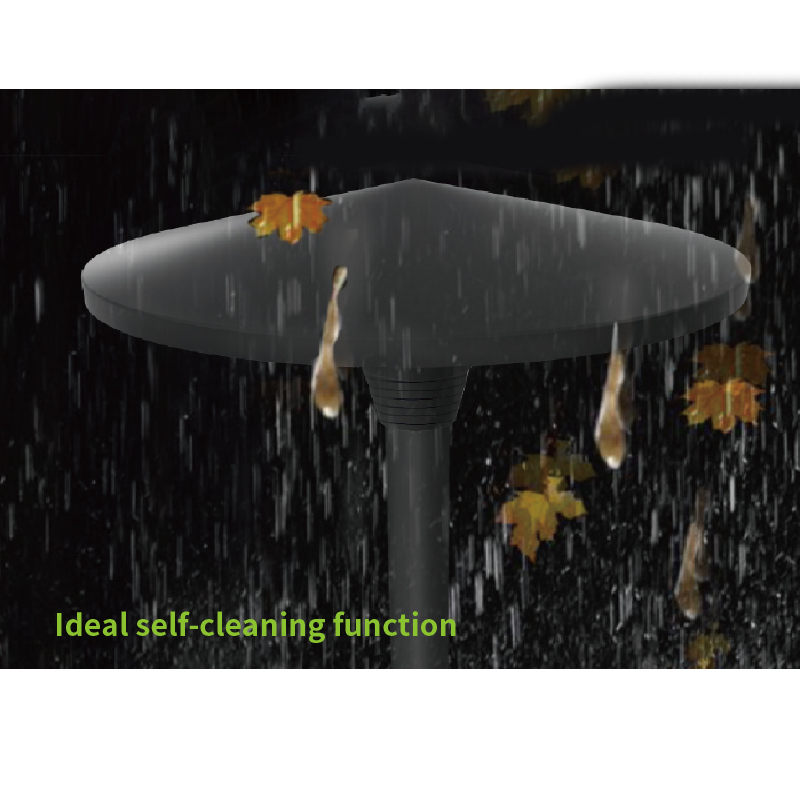

The upper shell of this product is made of die-cast aluminum alloy, with an inverted conical structure. Its surface is smooth and flat, which can avoid the accumulation of dust, fallen leaves and rainwater, thus achieving the purpose of self-cleaning.

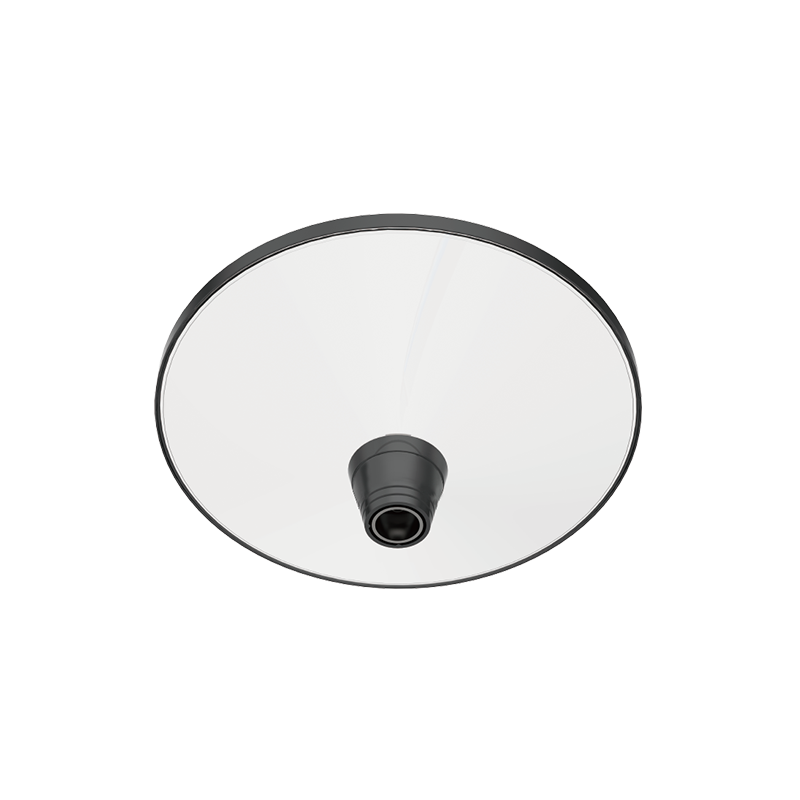

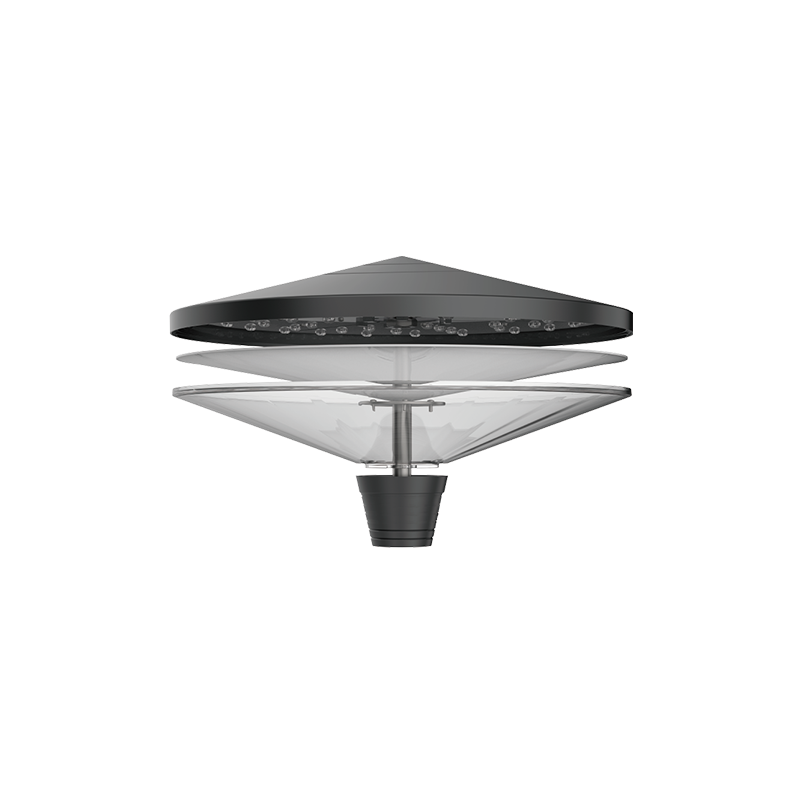

The light-emitting surface of the lower shell is made of optical-grade PC material. The light-emitting surface consists of a double-layer light-transmitting cover, making the light-emitting surface more uniform and the light softer.

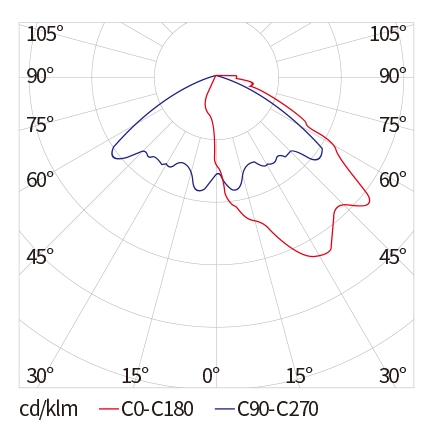

The light distribution pattern is circularly and symmetrically distributed. The beam angle (Imax50%) is 110°, the system power is 35W, and the recommended installation height is 3 – 4 meters.

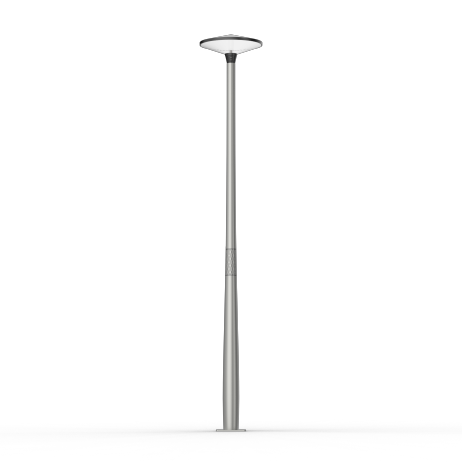

The lamp pole can be chosen from circular straight poles, circular tapered poles and chute poles. The surface color can be customized according to customer requirements.

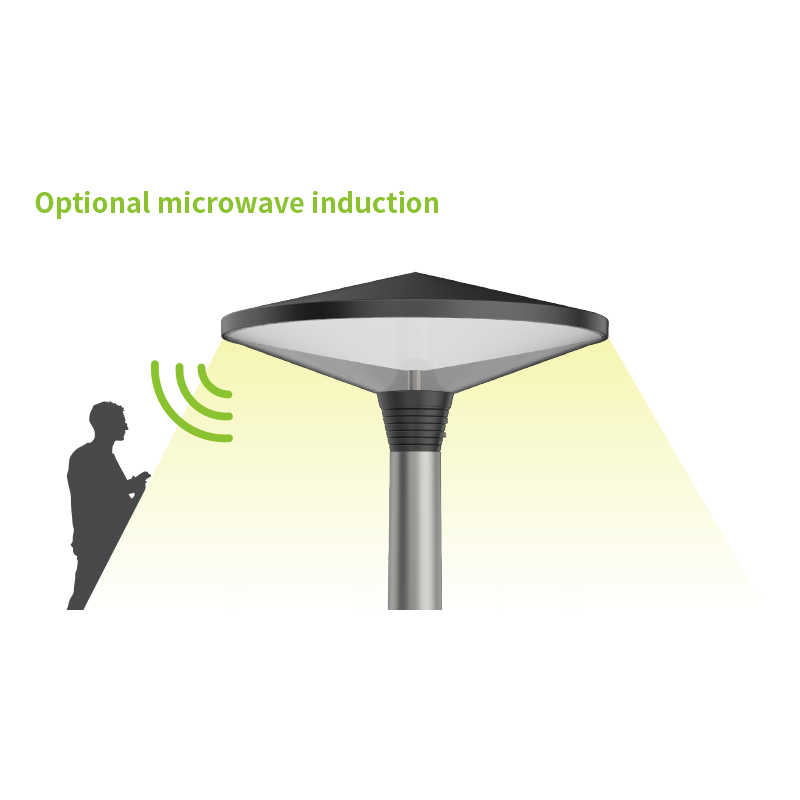

This garden luminaire can be equipped with a single lamp controller to realize the definition of lighting modes, the statistics of energy consumption and the alarm for faults.

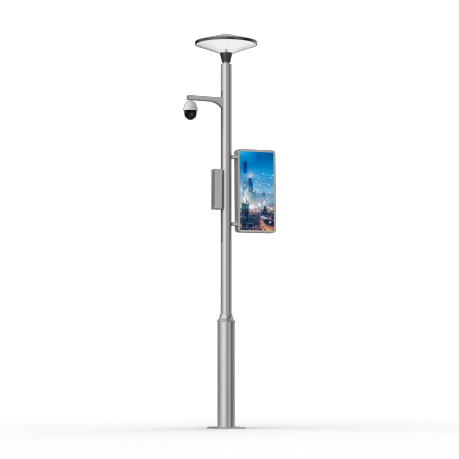

The pole body can be installed with devices such as cameras, display screens, audio equipment, detection equipment, as well as accessories like indicator signs.
Parameter table
| R.4005 | ||

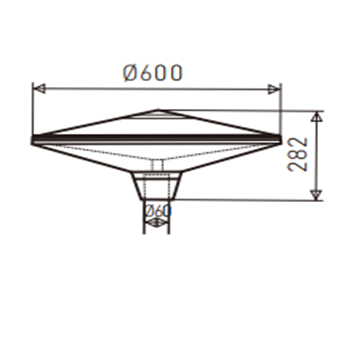

 | Size | Φ600*282mm |
| Power | 35W | |
| Efficiency | 60lm/w~90lm/w | |
| Optics | 110° | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK10 |
| IP | IP65 |
| safety class | Class I、Class II |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| Components Choosable | ·Dimming driver ·Optical controller ·Nema,Zhaga and other standard interface sockets ·Single lamp single control ·Surge Protective Device |
| A Variety Of Rod Combinations | ||
| Pole.3605 | Pole.3606 | Pole.3401 |
 |  |  |
| Material : Aluminum alloy | Material : Aluminum alloy | Material : Q235 |
| Thickness(mm) : 3 | Thickness(mm) : 3 | Thickness(mm) : 2.5 |
| Height(m) : 3.5/4 | Height(m) : 3.5/4 | Height(m) : 3.5/4 |
| Top size(mm) : Φ70 | Top size(mm) : Φ70 | Top size(mm) : Φ89 |
| Bottom size(mm) : Φ127 | Bottom size(mm) : Φ127 | Bottom size(mm) : Φ140 |
| Flange size(mm) : 240*240 | Flange size(mm) : 240*240 | Flange size(mm) : 300*300 |
