Short Description:

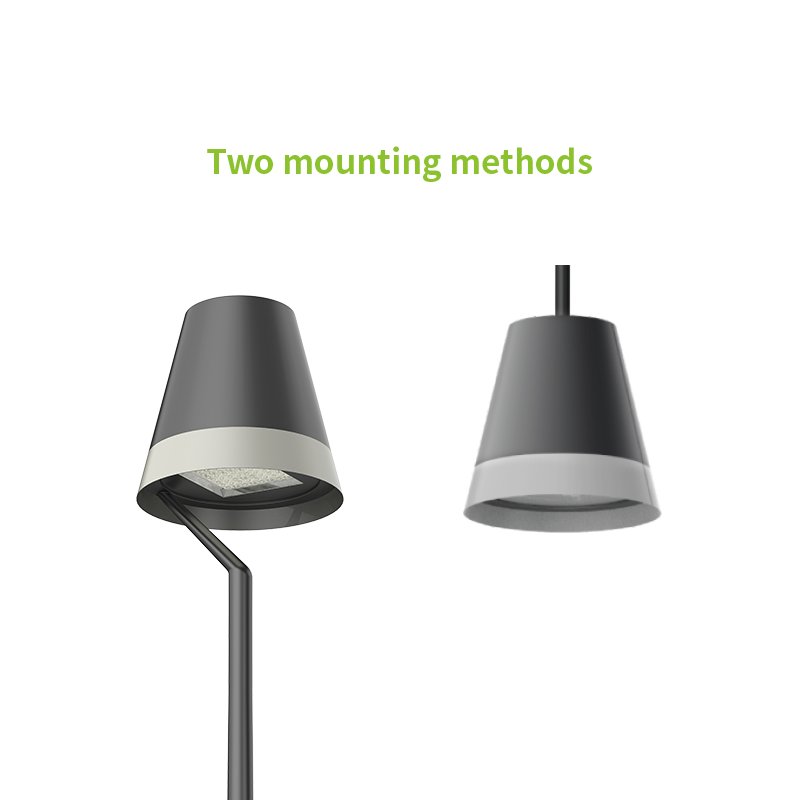

The R.4007 is a courtyard lighting fixture with multiple installation methods and multiple light distribution options. This product not only has the function of illuminating the ground but also enables the inner light transmission of its own shell, creating an effect of enhancing the ambient atmosphere. It is mainly applied in places such as commercial pedestrian streets, tourist attractions, leisure squares and parks.
Tags：commercial streets, Courtyard lights, landscape lighting, leisure squares, path lights,
Product Detail

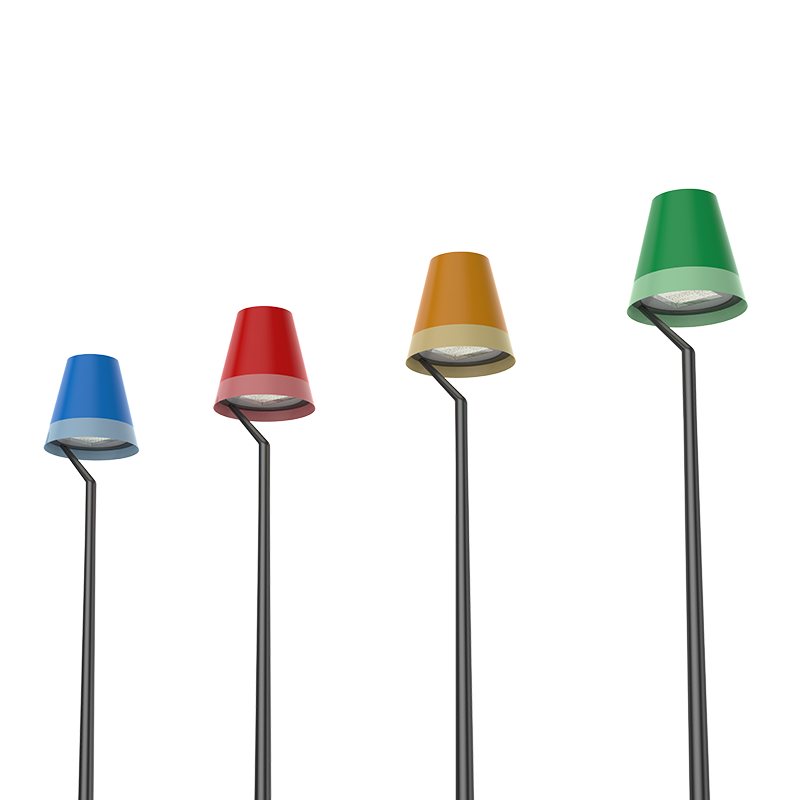

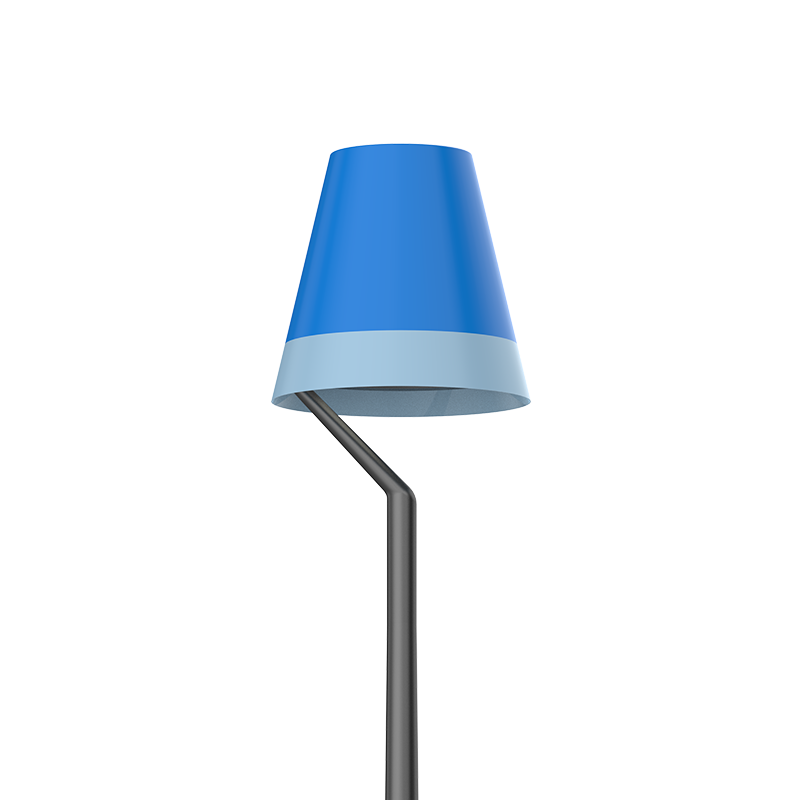

The outer shell of this product is made of translucent materials and consists of an upper part and a lower part. The colors of these two parts are different. (Please refer to the product pictures.)

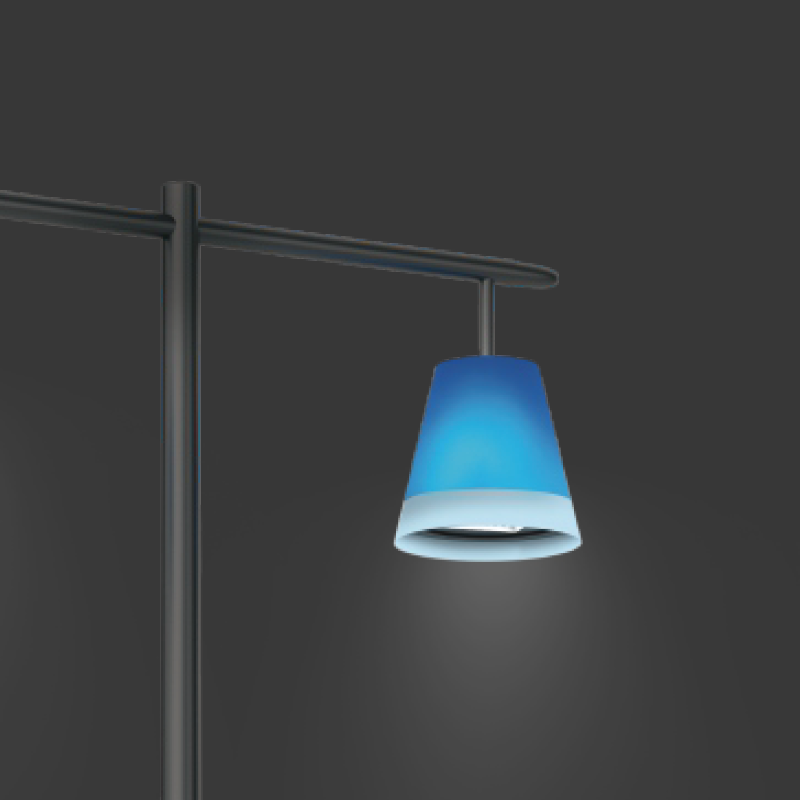

When the light is on at night, the shell will have an inner light transmission effect, and at this time, the shell will show the same color as it does during the day.

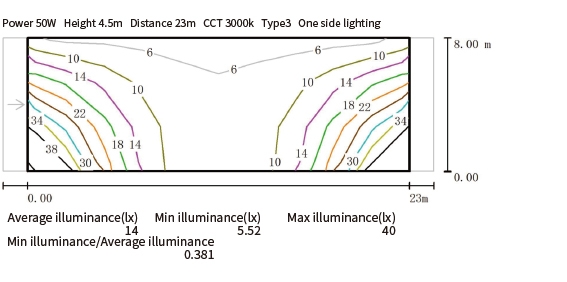

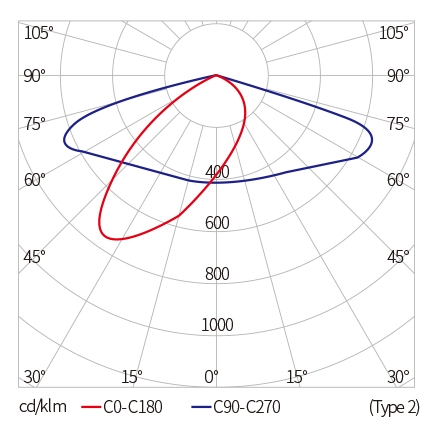

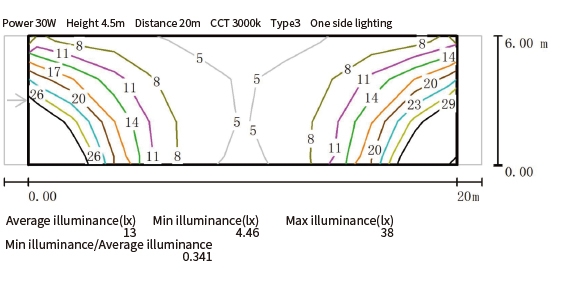

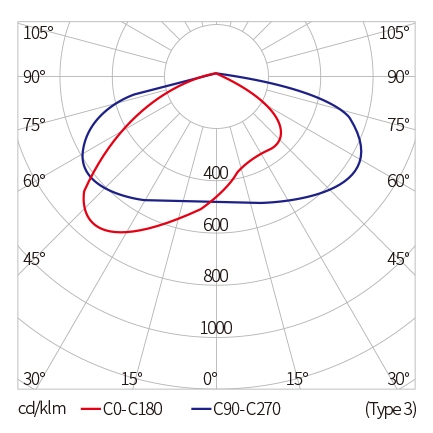

The ground lighting light distribution patterns of this product include symmetrical light distribution Type5 and asymmetrical light distribution Type2/Type3/Type4.

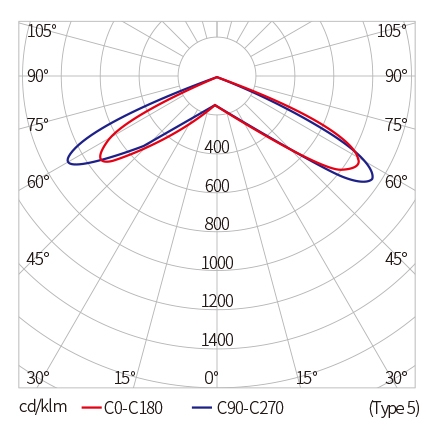

Type5 light distribution is generally applied to places with relatively large areas, such as leisure squares, leisure parks, and tourist scenic areas.

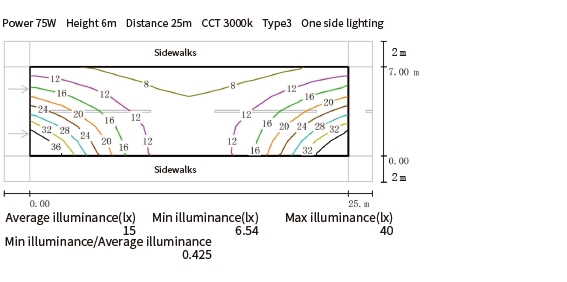

Type2/Type3 light distribution is generally applied to roads with motor lanes in scenic spots and residential areas, as well as leisure paths and commercial pedestrian streets.

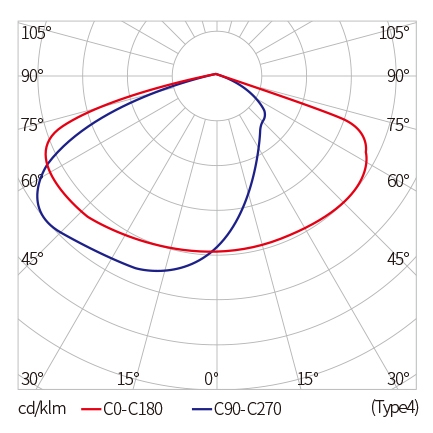

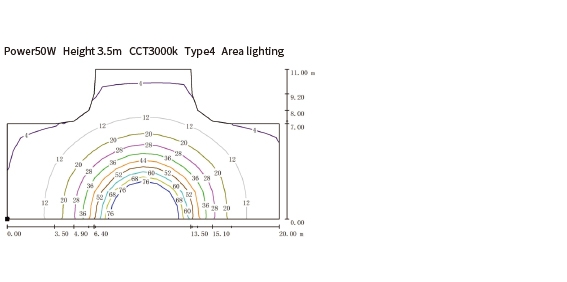

Type4 light distribution is generally applied to small road corners or intersections and parking lot areas.
The recommended installation height is between 3.5 meters and 6 meters, which is determined according to environmental requirements and light distribution patterns.

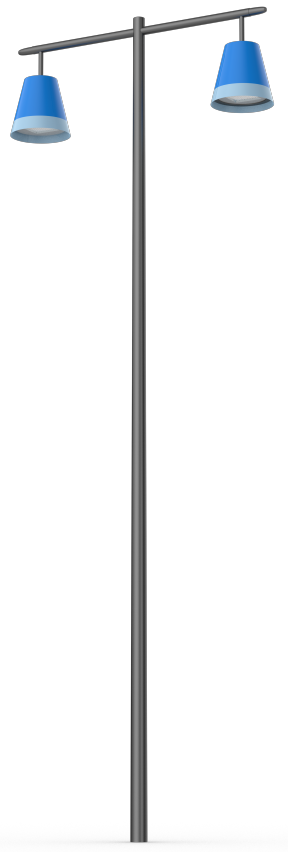

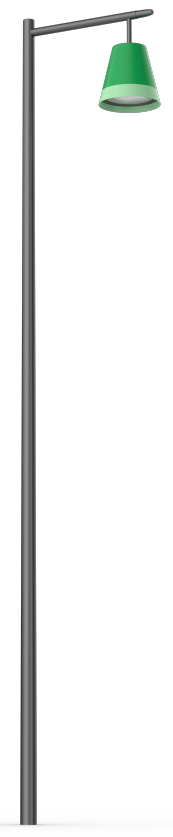

The lamp pole can be chosen from circular straight poles, circular tapered poles and chute poles. The surface color can be customized according to customer requirements.

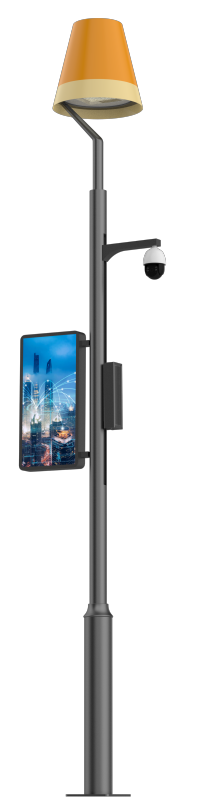

It can be equipped with a single lamp controller to realize the definition of lighting modes, the statistics of energy consumption and the alarm for faults. The pole body can be installed with devices such as cameras, display screens, audio equipment, detection equipment, as well as accessories like indicator signs.
Parameter table
| R.4007 | ||

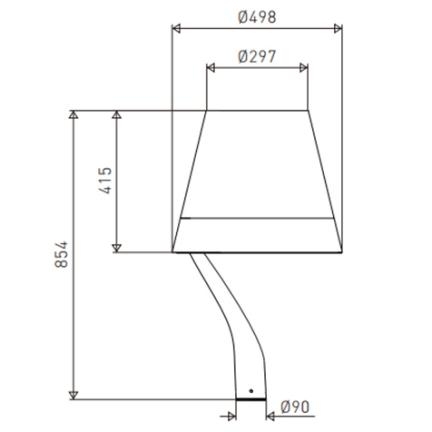

 | Size | Φ498*854mm |
| Power | 25~75W | |
| Efficiency | 100lm/w~130lm/w | |
| Optics | Type2 / Type3 / Type4 / Type5 | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK09 |
| IP | IP65 |
| safety class | Class I、Class II |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| Components Choosable | ·Dimming driver ·Optical controller ·Nema,Zhaga and other standard interface sockets ·Single lamp single control ·Surge Protective Device |
| A Variety Of Rod Combinations | ||||
| Pole.3605 | Pole.3606 | Pole.3401 | Pole.3607A | Pole.3607B |
 |  |  |  |  |
| Material : Aluminum alloy | Material : Aluminum alloy | Material : Q235 | Material : Q235 | Material : Q235 |
| Thickness(mm) : 3 | Thickness(mm) : 3 | Thickness(mm) : 2.5 | Thickness(mm) : 3 | Thickness(mm) : 3 |
| Height(m) : 3.5/4.5/6 | Height(m) : 3.5/4.5/6 | Height(m) : 3.5/4.5/6 | Height(m) : 3.5/4.5/6 | Height(m) : 3.5/4.5/6 |
| Top size(mm) : Φ70 | Top size(mm) : Φ70 | Top size(mm) : Φ89 | Size(mm) : Φ114 | Size(mm) : Φ114 |
| Bottom size(mm) : Φ127 | Bottom size(mm) : Φ127 | Bottom size(mm) : Φ140 | ||
| Flange size(mm) : 240*240 | Flange size(mm) : 240*240 | Flange size(mm) : 300*300 | Flange size(mm) : 240*240 | Flange size(mm) : 240*240 |
