Short Description:

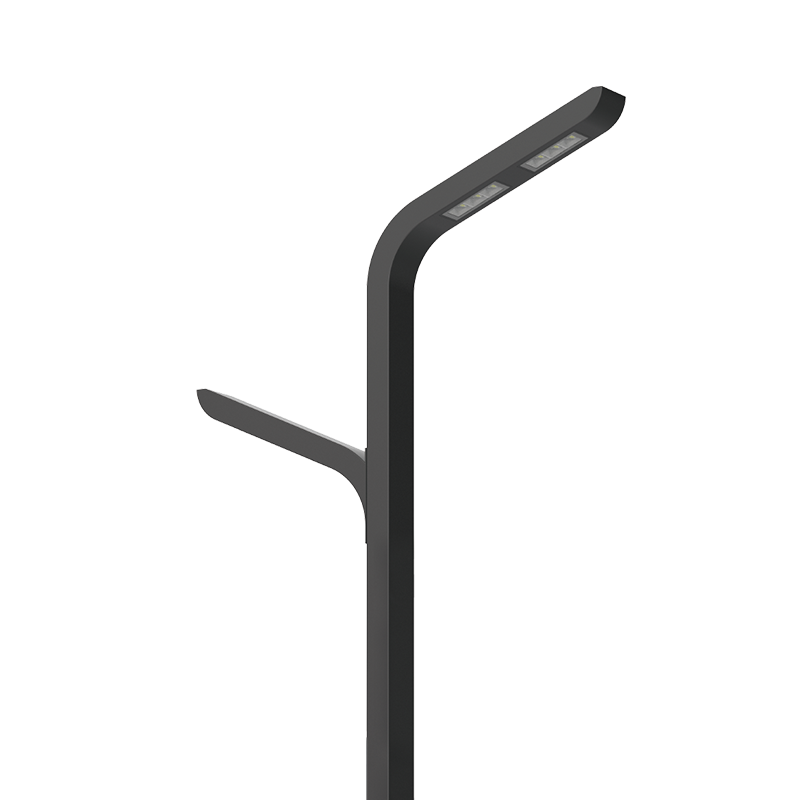

R.4010 is a landscape lighting fixture with a rectangular pole structure, featuring a stable, simple, and elegant appearance, capable of meeting the lighting needs of both urban and rural environments. Mainly used for lighting small motor vehicle roads and pedestrian pathways in tourist attractions. It can meet the functional requirements of general lighting, smart lighting, and photovoltaic lighting.
Tags：Garden light, Landscape light, outdoor lighting, pathway light, square lamp post,
Product Detail
The product is made of Q235 rectangular steel pipe, with a surface treatment of hot-dip galvanizing and electrostatic resin powder coating.

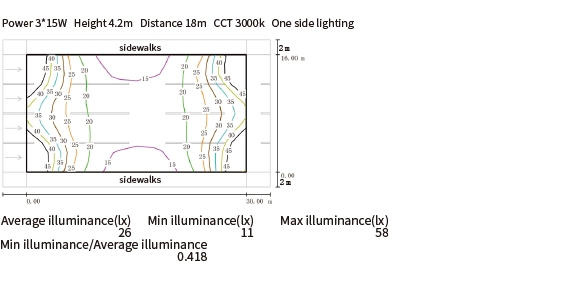

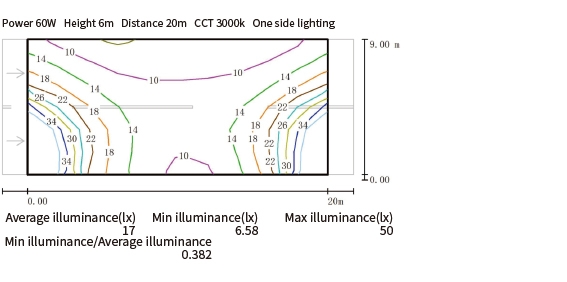

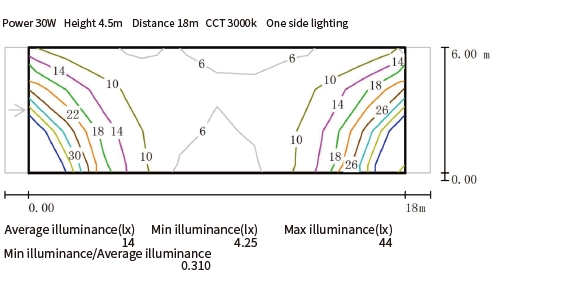

Depending on the actual requirements, products with single or double-headed structures can be selected, with a height of 3.5 to 8 meters, suitable for road widths of 6 to 16 meters, and pole spacing of 10 to 30 meters. To achieve the best lighting effect, it is recommended that users use DIALUX software for optical simulation calculations in advance.

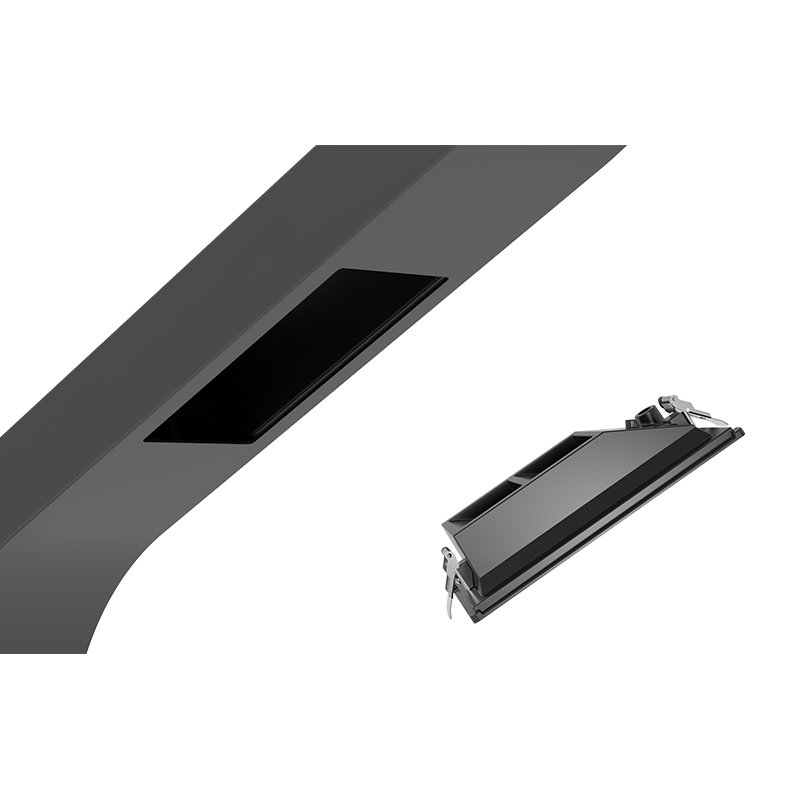

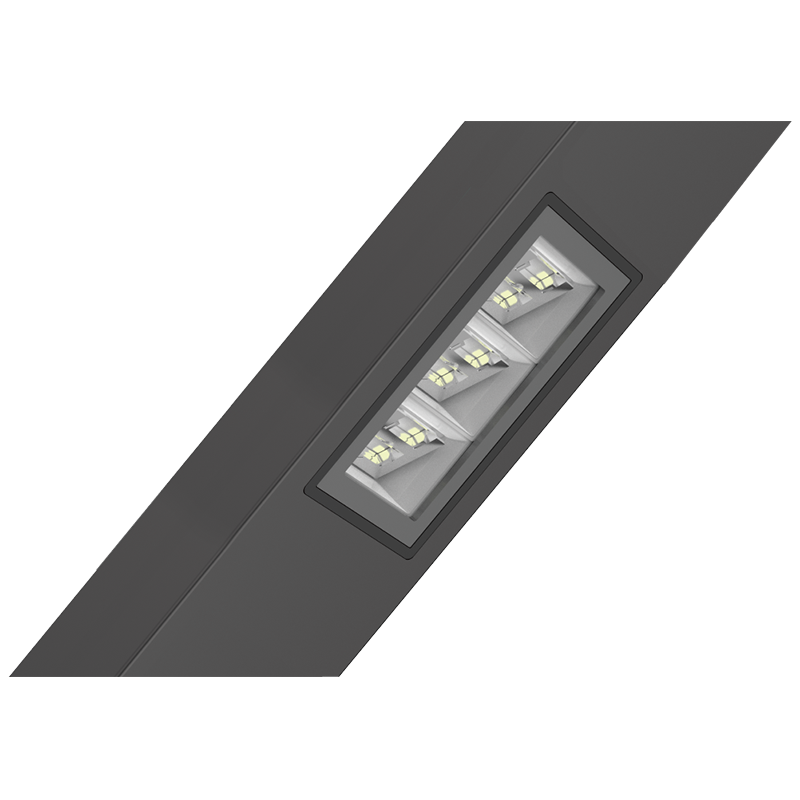

The light source is an independent embedded LED module that integrates well with the pole and can be easily disassembled for replacement and maintenance. The individual light module is available in two power configurations: 15W and 30W, and multiple modules can be combined to form different system power levels.

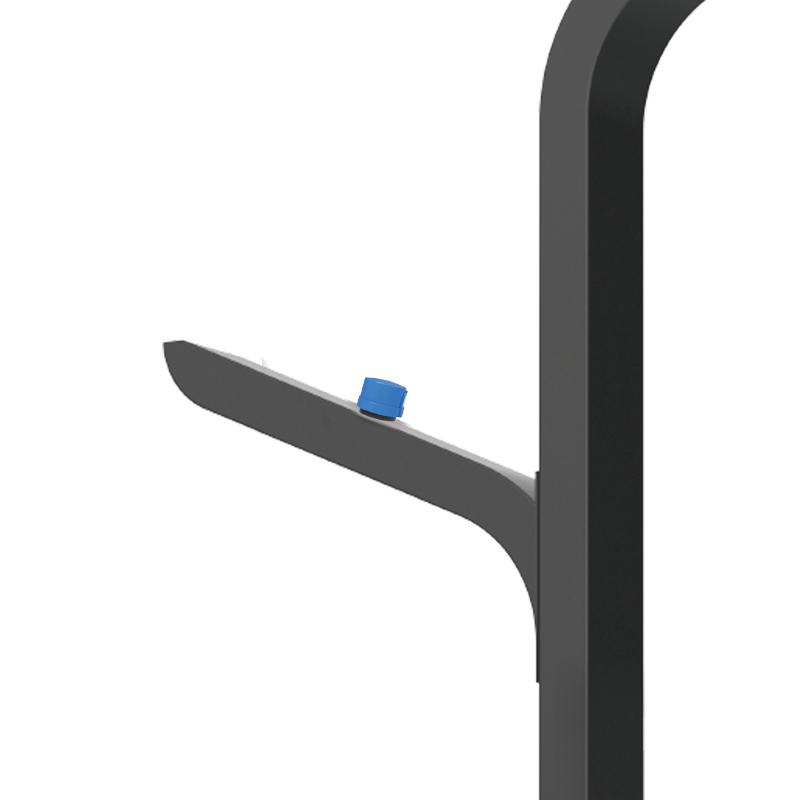

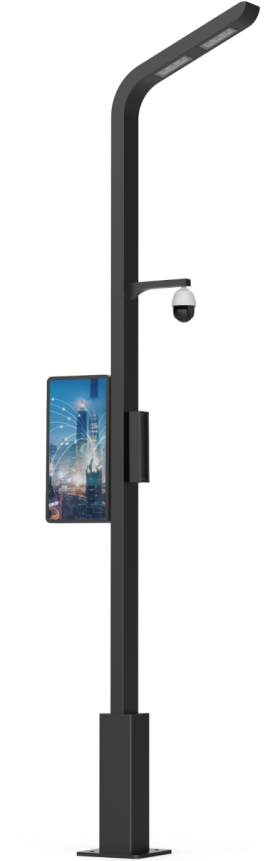

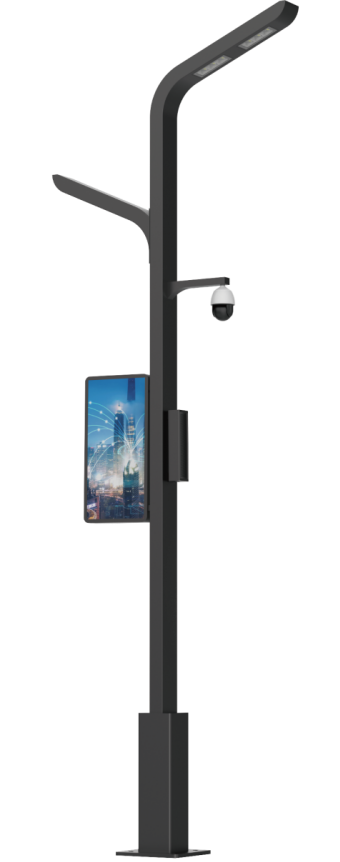

The upper part of the pole is equipped with a light module for illumination purposes, while the middle part of the pole can accommodate devices such as cameras, displays, speakers, and sensors, making it a smart lighting product.

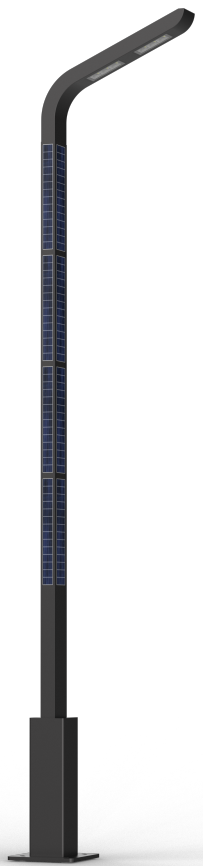

In areas with limited electricity, Green also offers photovoltaic power generation configurations, allowing the system to achieve a maximum lighting power of 30W.
Parameter table
| R.4010-A | R.4010-B | Solar parameters |
 |  |  |
| Material : Q235 | Material : Q235 | Lithium battery system : 360Wh 12V |
| Thickness(mm) : 3.5 | Thickness(mm) : 3.5 | Photovoltaic modules : 120W 18-20V |
| Height(m) : 4.5/6 | Height(m) : 8 | Operating temperature : -10°C~+60°C |
| Size(mm) : 160*80 | Size(mm) : 160*80 | Lighting time : All night 3-5days |
| Flange size(mm) : 380*380 | Flange size(mm) : 380*380 | Induction mode : Light/time-controlled |
| Attributes | Description |

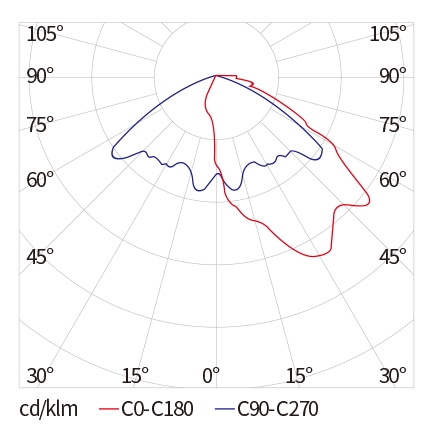

| Optics | 130°*70° |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK09 |
| IP | IP65 |
| safety class | Class I、Class II |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| Components Choosable | ·Dimming driver ·Optical controller ·Nema,Zhaga and other standard interface sockets ·Single lamp single control ·Surge Protective Device |
