Short Description:

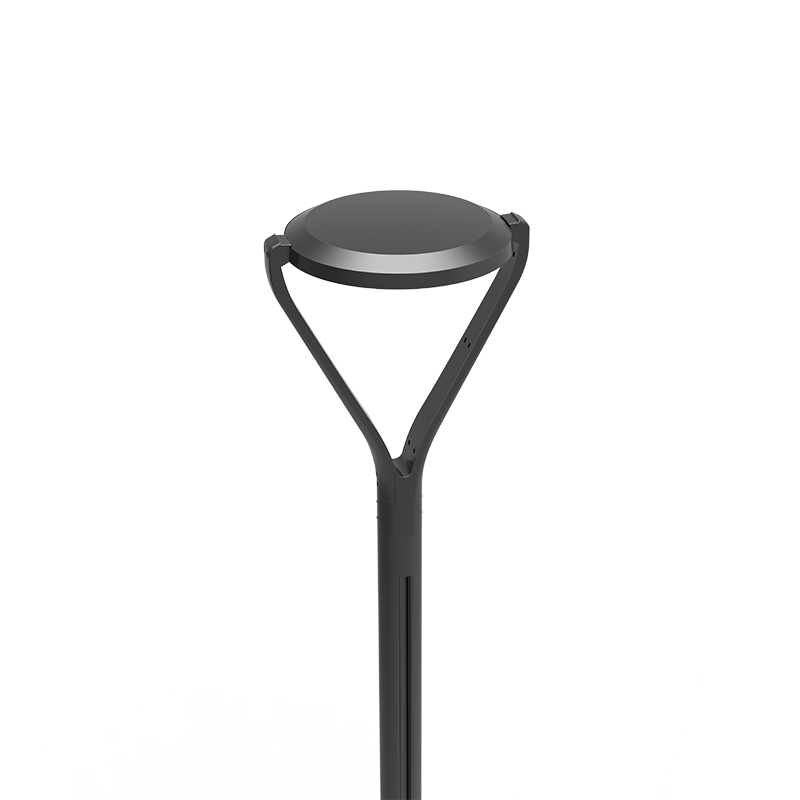

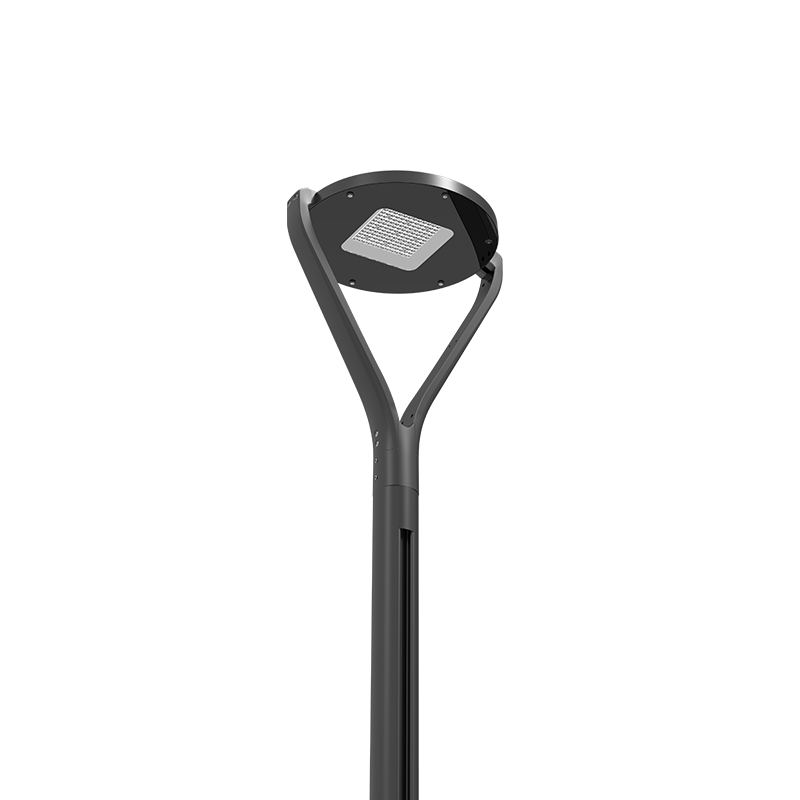

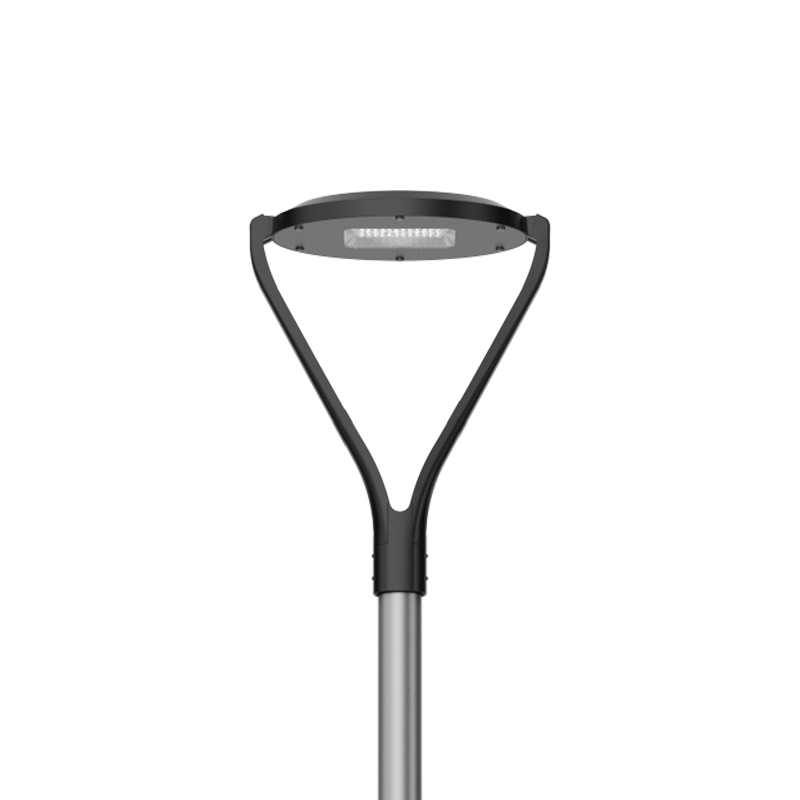

The R.4014 series products provide users with an ideal road lighting solution through mature and advanced LED technology, stable and reliable performance, and exceptional cost-effectiveness. The aluminum alloy lamp body and tempered glass light-emitting surface ensure excellent reliability. Suitable for parks, squares, leisure walkways, bike paths, and narrow roads for motor vehicles.
Tags：Courtyard light, outdoor landscape, pathway, sidewalk, walkway light,
Product Detail

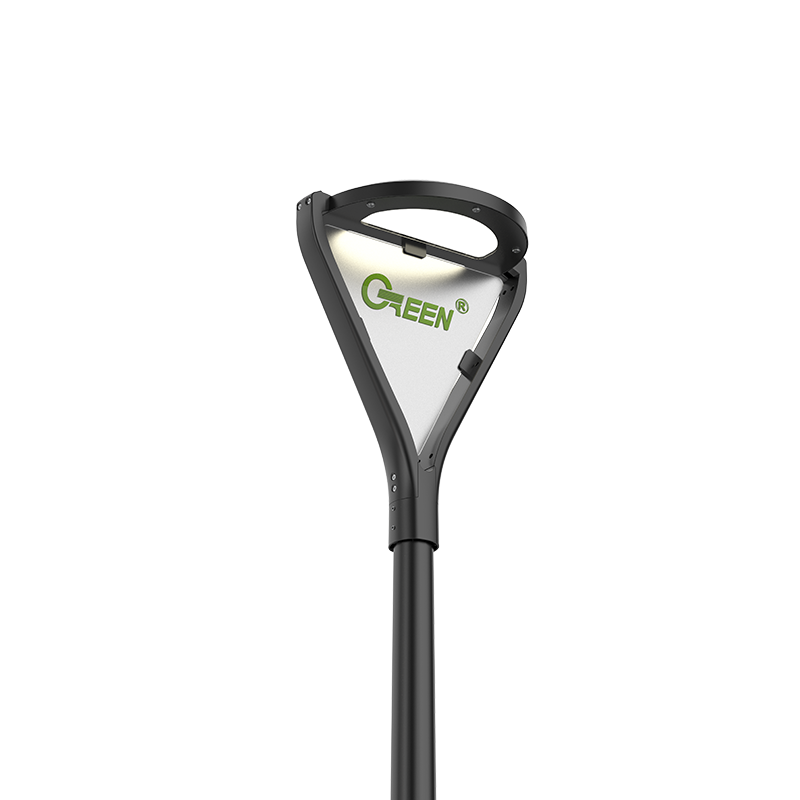

The lamp body is made of die-cast aluminum alloy, with a light-emitting surface made of tempered glass, providing reliable protection and reducing the impact of external environments on internal optical and electronic components.
The optical lens is made of PC material, combined with a high reflectivity PE reflective film, resulting in more efficient light emission.
No risk of biological blue light hazards, in compliance with EN62471:2008 standard requirements.

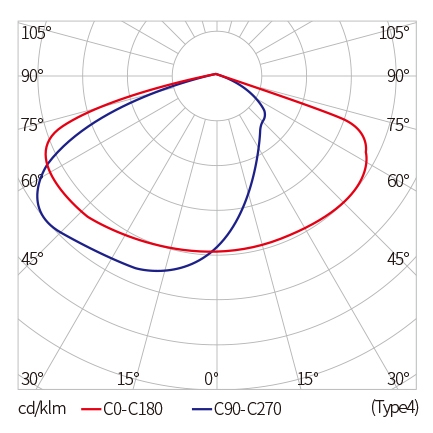

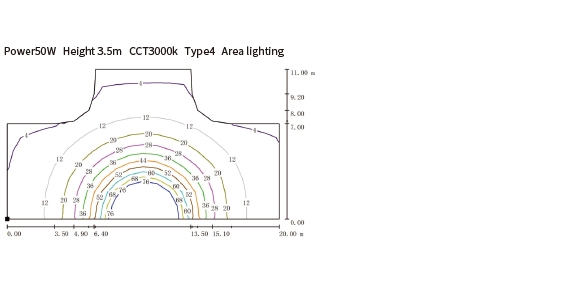

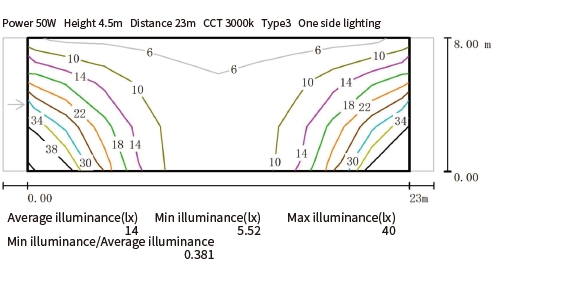

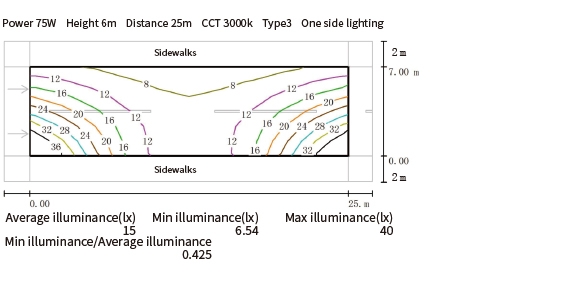

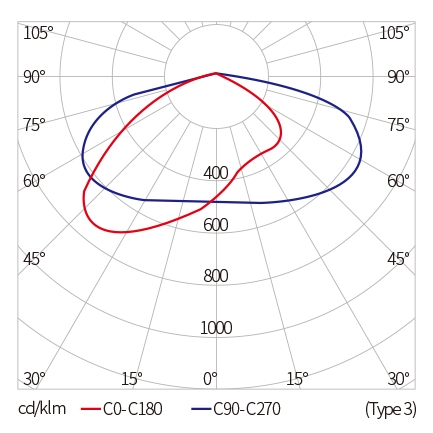

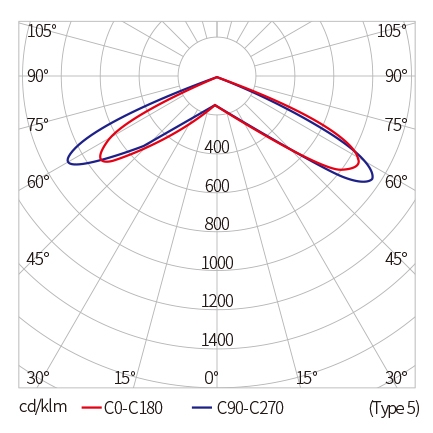

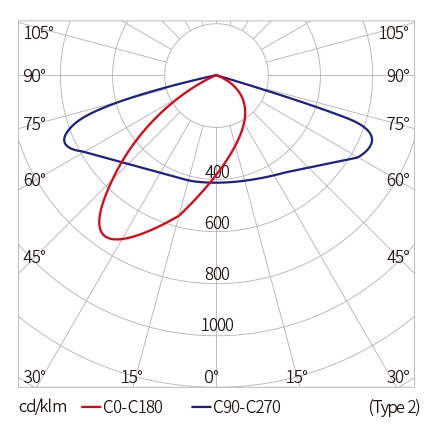

There are symmetrical and asymmetrical light distributions; symmetrical light distribution is suitable for area lighting, while asymmetrical light distribution meets the needs of road lighting.
In situations with high glare control requirements, a glare-reducing optical panel can be added inside the lamp body to provide a softer light output.
The fixture is top-mounted, with an installation height of 3.5 meters to 5 meters.
Surface colors can be customized according to customer requirements.
Parameter table
| R.4005 | ||

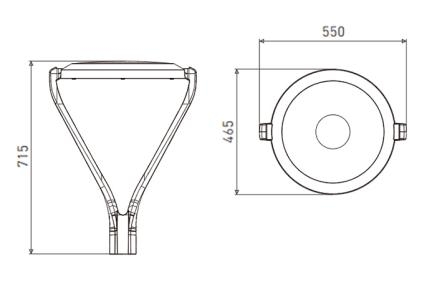

 | Size | L550*W465*H715mm |
| Weight | 8.27kg | |
| Power | 30~75W | |
| Efficiency | 80lm/w~140lm/w | |
| Optics | Type2/Type3/Type4/Type5 | |
| Attributes | Description |
| Rated power | 90~305Vac 50/60 Hz |
| Control solution | Monochrome always light or 0-10V dimming |
| Anti-collision level | IK09 |
| IP | IP66 |
| safety class | Class I、Class II |
| Corrosion protection level | WF2 |
| Ambient temperature | -45℃~+50℃ |
| Ambient humidity | 10%~95%RH |
| Components Choosable | ·Dimming power supply ·Surge protector |

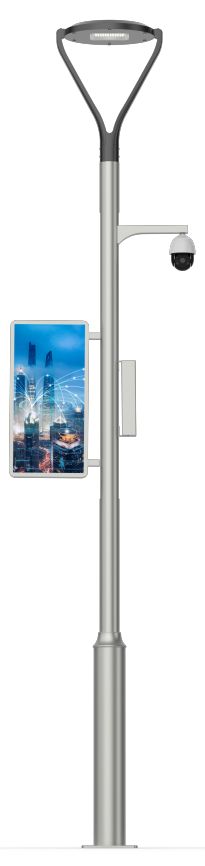

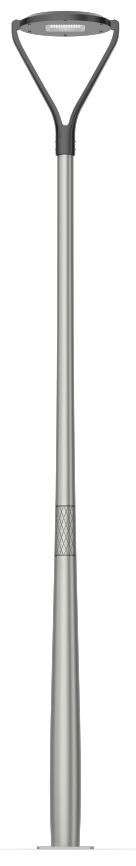

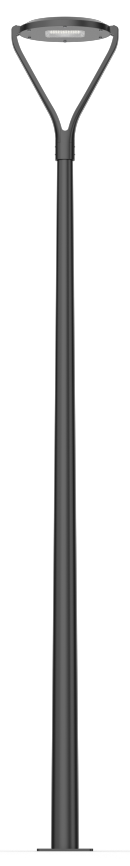

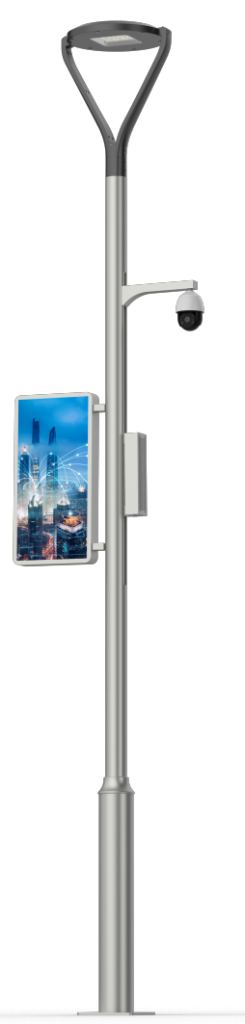

| A Variety Of Rod Combinations | ||||
| Pole.3605 | Pole.3606 | Pole.3401 | Pole.3401 | Pole.3402 |
 |  |  |  |  |
| Material : Aluminum alloy | Material : Aluminum alloy | Material : Q235 | Material : Q235 | Material : Q235 |
| Thickness(mm) : 3 | Thickness(mm) : 3 | Thickness(mm) : 2.5 | Thickness(mm) : 2.5 | Thickness(mm) : 3 |
| Height(m) : 3.5/4/4.5/5 | Height(m) : 3.5/4/4.5/5 | Height(m) : 3.5/4/4.5/5 | Height(m) : 3.5/4/4.5/5 | Height(m) : 6/8 |
| Top size(mm) : Φ85 | Top size(mm) : Φ85 | Top size(mm) : Φ89 | Top size(mm) : Φ89 | Top size(mm) : Φ114 |
| Bottom size(mm) : Φ127 | Bottom size(mm) : Φ127 | Bottom size(mm) : Φ140 | Bottom size(mm) : Φ140 | Bottom size(mm) : Φ165 |
| Flange size(mm) : 240*240 | Flange size(mm) : 240*240 | Flange size(mm) : 300*300 | Flange size(mm) : 300*300 | Flange size(mm) : 300*300 |
