The housing is made of high-pressure die-cast aluminum in one piece, with a tempered glass light-emitting surface and an IP66 waterproof and dustproof rating, ensuring excellent reliability.

The ultra-thin lamp body thickness, rectangular appearance, combined with a unique lamp pole, showcases a strong artistic style, perfectly and elegantly integrating the overall structure with the surrounding environment.

The smooth surface structure has an ideal self-cleaning function that prevents water, snow, dust, and other accumulations.

The IK09 impact resistance performance and 3G seismic resistance performance can withstand wind speeds of up to 57 m/s.

According to actual needs, a single lamp controller can be configured to achieve intelligent control of the lighting scheme.

Surface colors can be customized according to customer requirements.

R.4015

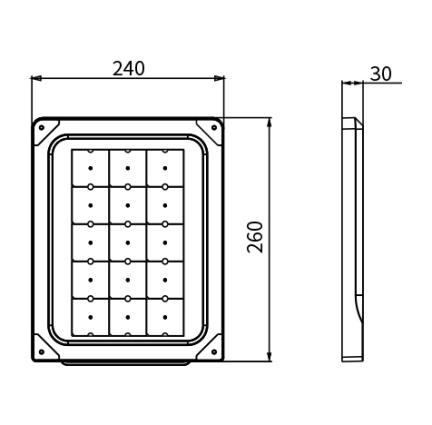

	Size	L260*W240*H30mm
	Power	30~75W
	Efficiency	100lm/w~140lm/w

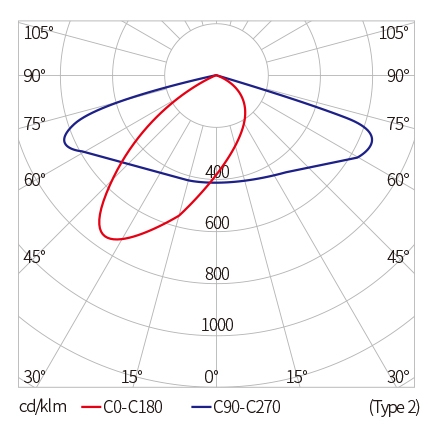

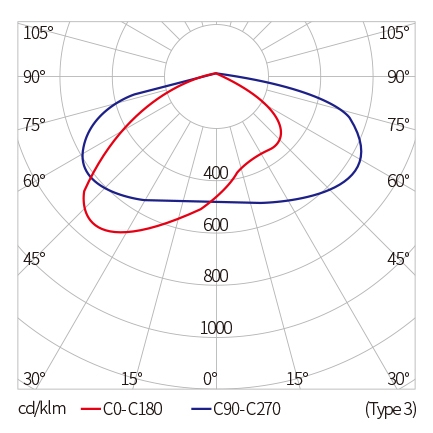

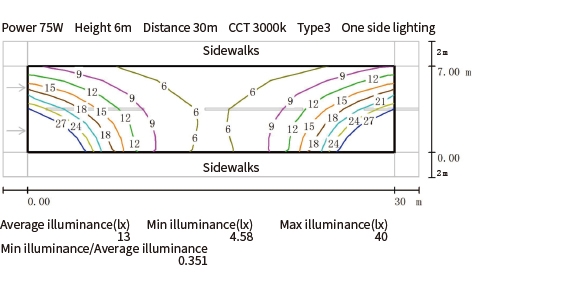

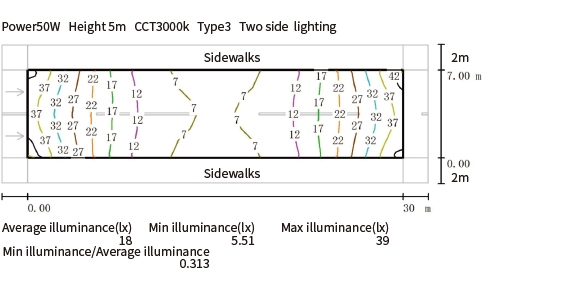

	Optics	Type2/Type3

Attributes	Description
Rated power	90~305Vac 50/60 Hz
Control solution	Monochrome always light or 0-10V dimming
Anti-collision level	IK09
IP	IP65
safety class	Class I、Class II
Corrosion protection level	WF2
Ambient temperature	-45℃~+50℃
Ambient humidity	10%~95%RH
Components Choosable	·Dimming power supply ·Surge protector

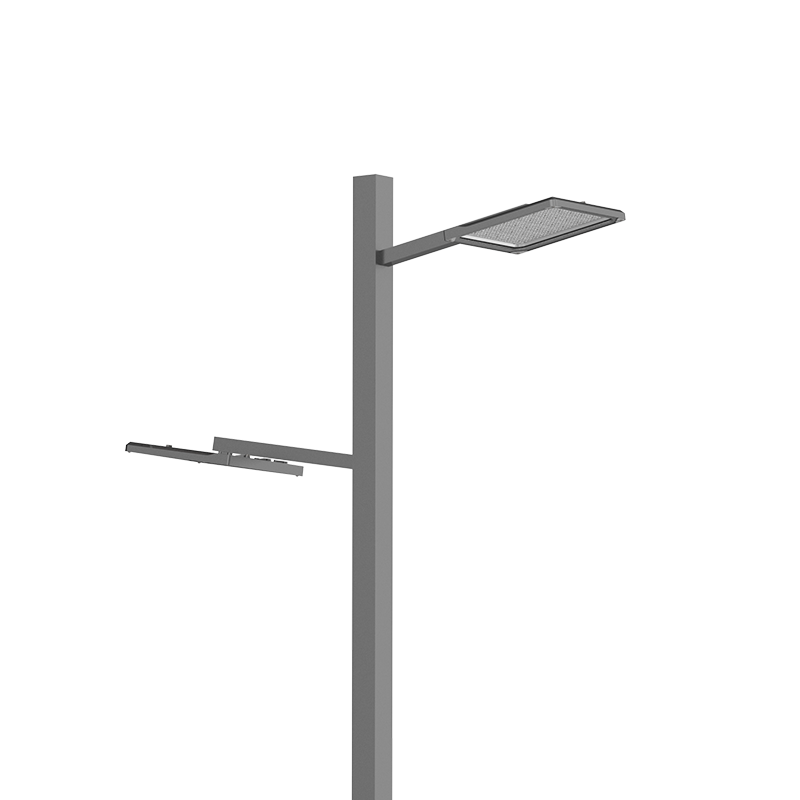

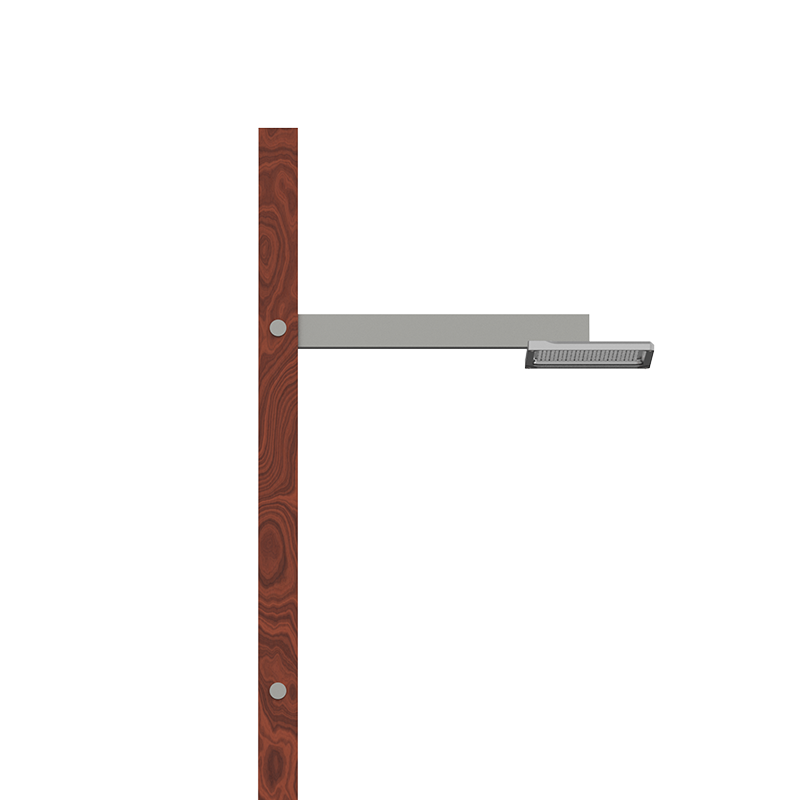

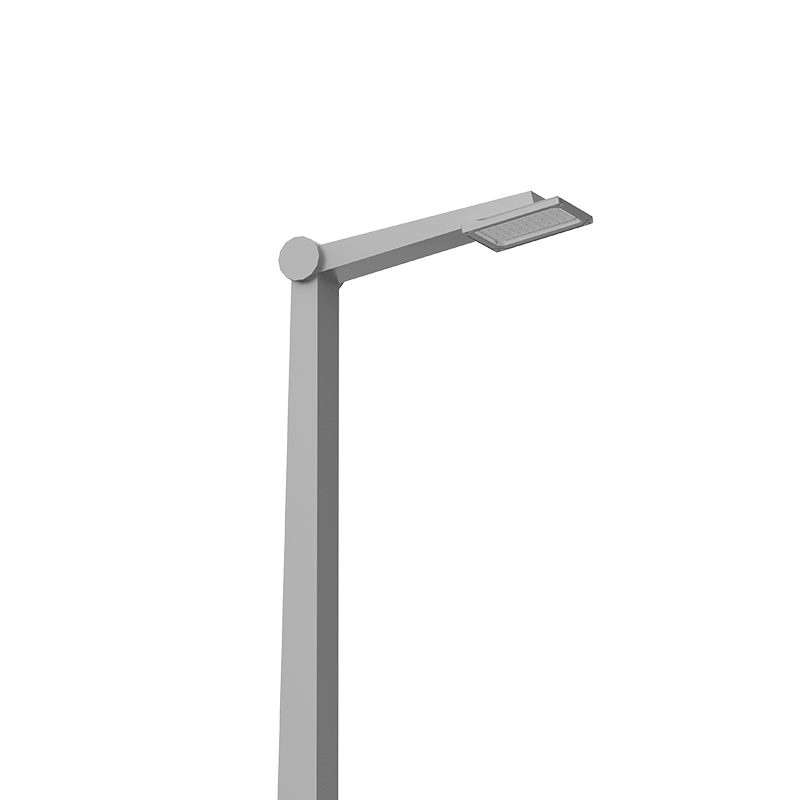

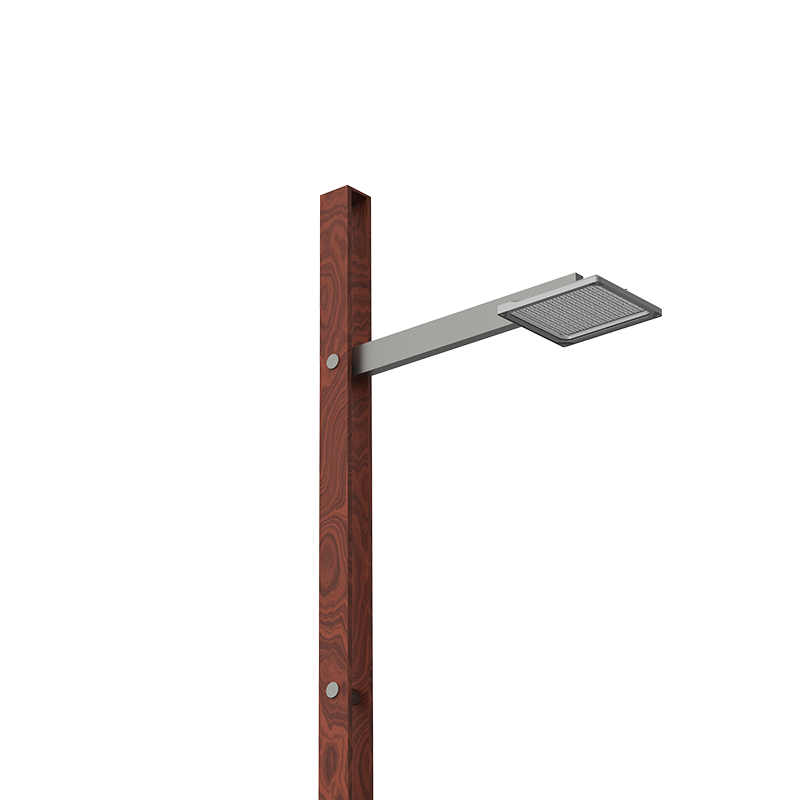

A Variety Of Rod Combinations
Pole.3501		Pole.3511	Pole.3512
Material : Q235		Material : Q235	Material : Q235
Thickness(mm) : 3		Thickness(mm) : 3	Thickness(mm) : 3
Height(m) : 4.5/6	Height(m) : 8	Height(m) : 4.5/6/8	Height(m) : 4.5/6/8
Top size(mm) : 100*100	Top size(mm) : 120*120	Size(mm) : 150*120	Size(mm) : 225*150
Bottom size(mm) : 200*200	Bottom size(mm) : 250*250
Flange size(mm) : 300*300		Flange size(mm) : 240*240	Flange size(mm) : 320*320
